Okay, so I wanted to mess around with MOSFETs in my circuit simulator today. I’ve used them before, but I wanted to really get a handle on the N-channel variety, especially how the symbol works and what it all means when I’m hooking things up.
First, I opened up my trusty simulator. I’ve been using this thing for ages, it’s pretty intuitive, you know? I went to the component library – it’s usually a little icon that looks like a resistor or something. Clicked on that.
Finding the Right Component
Then, I needed to find the N-channel MOSFET. Usually, there’s a search bar, or they’re categorized. I typed in “MOSFET” and a bunch of options popped up. I made sure to pick the “N-Channel” one. There are also P-Channel, so I have to get the right part!

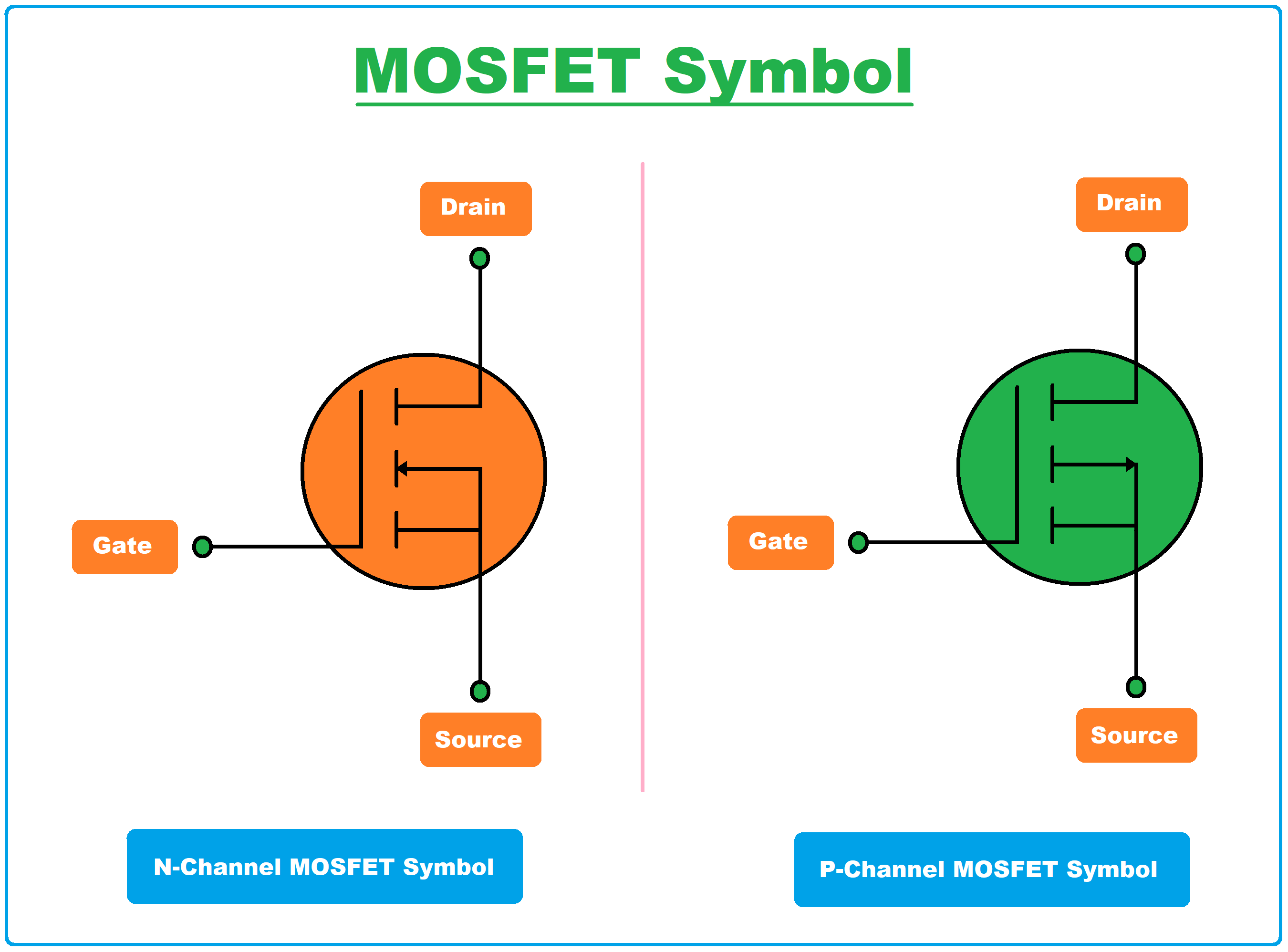

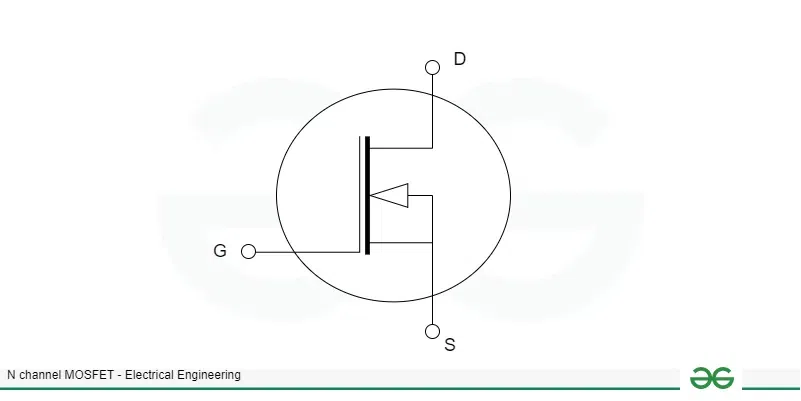

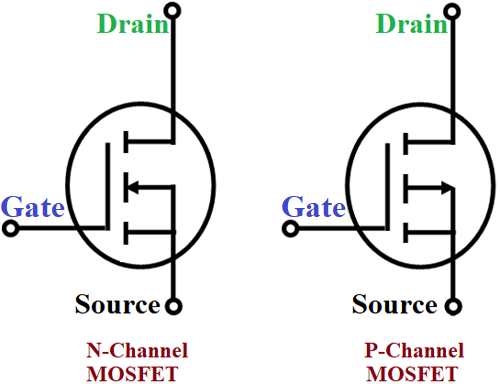

The Symbol Itself
Once I placed it on the schematic, I took a good look at the symbol. It’s got three terminals, right? You’ve got the:
- Gate (G): This is like the control knob. It’s usually drawn as a line that’s kind of separate from the rest of the symbol. It doesn’t directly touch the other parts, which is important because it’s insulated!
- Drain (D): This is where the current usually flows out of, if you think of it like a water pipe.
- Source (S): This is where the current usually flows into the MOSFET.
And there’s that little arrow! On an N-channel MOSFET, the arrow points inwards towards the channel. That’s the key to remembering which type it is. P-channel ones have the arrow pointing out.
Setting Up a Simple Circuit
To see it in action, I decided to build a super basic circuit. I grabbed a voltage source, a resistor (to limit current, safety first!), and connected them up.
I connected the positive side of the voltage source to the Drain (D) through the resistor. Then I connected the Source (S) to the negative side of the voltage source (ground, basically).
The Gate (G) is where the magic happens. I added another voltage source to the Gate, but this one I made adjustable. I wanted to see how changing the Gate voltage affected the current flowing through the Drain and Source.
Running the Simulation
I hit the “run” button on the simulator, and watched the numbers. At first, with the Gate voltage at zero, there was practically no current flowing through the Drain and Source. The MOSFET was “off,” like a closed switch.
Then, as I slowly increased the Gate voltage, I saw the Drain current start to creep up. The MOSFET was starting to “turn on,” allowing current to flow. It’s like opening a valve – the higher the Gate voltage (up to a point, of course!), the more current flowed.
I played around with different Gate voltages and resistor values, just to get a feel for how it all behaved. It really helped to visualize the current flow and see how the Gate voltage acted as that control switch.
It’s pretty cool how a little voltage on the Gate can control a much larger current flowing through the Drain and Source. That’s the whole point of a MOSFET, and seeing it in action in the simulator really solidified it for me.
