Okay, so, I gotta share this thing I’ve been messing with – it’s about MOSFETs, and it’s kinda cool. I mean, not like, superhero cool, but more like, “hey, this is neat” cool. I’ve been trying to figure out how these little electronic switches actually work, and I gotta say, it’s been a bit of a ride.
First off, I started digging into what these MOSFET things even are. Turns out, they’re like the tiny switches inside your gadgets that control the flow of electricity. And there are two main types, like, two flavors – N-channel and P-channel. It’s like choosing between chocolate and vanilla, except here, it’s about how the electrons move around. I found out the N-channel is like the popular kid on the block, used in all sorts of power supply stuff and converters, while the P-channel is more like, the quiet one in the back, doing its thing with load switches and high-side switches. It’s pretty cool that the application of Nch and Pch is different.

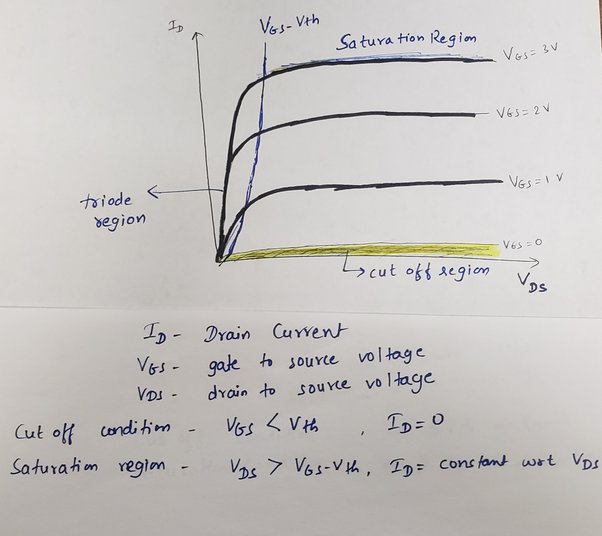

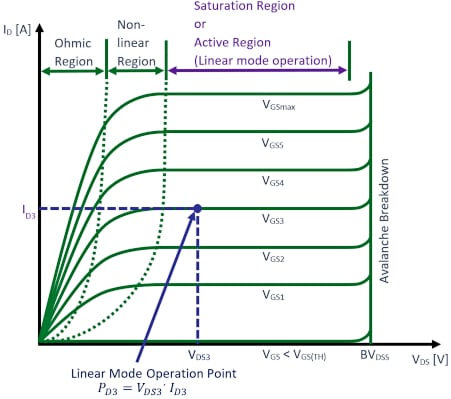

Next up, I jumped into how these MOSFETs actually operate. It’s not just on and off, you know? There are actually these “regions” where they do different stuff. I tried to wrap my head around this, and it took some time, but I think I got it now.
- Cutoff Region: This is like the “off” position. I pictured it like a closed door. Basically, there’s not enough “push” (voltage, in tech speak) to get the electrons moving, so the switch is off. The first thing I did was set the gate-source voltage (VGS) below the threshold voltage(Vth). No current flow, so I just made note of that and moved on.
- Triode Region: Okay, this one’s a bit trickier. It’s like the MOSFET is “sort of” on. I imagined it like a tap that’s not fully open, letting some water through, but not a full stream. The first thing I did was, applying a VGS greater than the Vth. Then, I slowly increased the drain-source voltage (VDS). At first, the current increased linearly, which was pretty cool to see on the multimeter.
- Saturation Region: Now, this is where things get interesting. The MOSFET is fully “on” here, but it’s not letting more current through even if you increase the voltage. I did this by, increasing the VGS even further and then played around with the VDS. What I found was, that the current stopped increasing and it had a limitation even as I kept upping the VDS. It’s like the tap is fully open, and no matter how much more you turn it, the water flow doesn’t increase.
Then there’s this other mode called “saturation mode”, which is a bit different. But let’s stick to these three for now.
So, I got myself some MOSFETs and started experimenting. I set up a simple circuit with a power source, some resistors, and of course, the MOSFET. I used a multimeter to measure the voltage and current, just to see what was going on. I won’t lie, it was a bit of trial and error. Sometimes things didn’t work out as I expected, and I had to double-check everything. But that’s part of the fun, right?
After a bunch of tries, I finally managed to get the MOSFET working in each of these regions. It was pretty satisfying to see the current change as I adjusted the voltages. Like, in the cutoff region, there was practically no current, just like the theory said. In the triode region, the current increased as I increased the voltage, but it wasn’t a huge jump. And in the saturation region, the current stayed pretty much the same, no matter how much I increased the voltage at the other end. I did have a lot of fun when I successfully went through these processes.
I even made some notes and drew some graphs, like a real scientist. It wasn’t anything fancy, but it helped me understand what was going on. I felt a bit proud of myself, to be honest. I mean, I’m no electrical engineer, but I managed to figure this thing out. It’s like, I unlocked a little secret of the universe, or at least, a tiny part of how electronics work.
Anyway, I just wanted to share this little adventure of mine. It’s not every day you get to play around with MOSFETs and actually understand them, at least a little bit. If you’re curious about electronics, I’d say give it a try. It’s pretty rewarding when you finally see things click into place. Just be careful not to blow anything up, haha!
