Alright, let’s talk about the saturation region of a MOSFET. For ages, this felt like one of those things I just “knew” existed, but if you asked me to really explain it from hands-on experience, I’d probably mumble something and change the subject. It wasn’t until I really sat down and messed with it that the penny dropped.
My Early Fumbles with This Stuff
I remember trying to build a simple circuit, I think it was supposed to be a basic current source or something to drive an LED array consistently. I’d read about MOSFETs, seen the characteristic curves in textbooks, Vgs this, Vds that. Sounded simple enough. But my circuit just wasn’t behaving. The current was all over the place, or not what I calculated. I was treating the MOSFET like a perfect switch, but I was trying to get it to do something a bit more subtle, and clearly, I was missing a big piece of the puzzle. I probably fried a couple of MOSFETs too, just by not getting how to control them properly when they weren’t fully on or fully off.
Finally, Getting Down to Brass Tacks
So, I decided to go back to basics. No fancy application, just a MOSFET, some power supplies, and a multimeter. That’s my lab, basically. Here’s what I did:
- The Setup: I grabbed an N-channel enhancement MOSFET – nothing special, just a common one. I hooked up a variable power supply to the gate-source (this was my Vgs) and another one to the drain-source (my Vds). And, of course, a resistor in the drain path to limit current and to measure the drain current (Id) across it. Safety first, sort of.
- Playing with Vgs: First, I kept Vds at a decent voltage, say 5 volts. Then I slowly started increasing Vgs from zero. Nothing, nothing, then boom, current started to flow. That’s the threshold voltage, right? As I kept increasing Vgs, the drain current Id also went up. No surprises there.
- The Vds Game: This was the crucial bit. I’d set Vgs to a specific voltage, something that definitely had the MOSFET turned on. Let’s say I set Vgs so I was getting a healthy Id. Then, I started playing with Vds. I started Vds low and slowly cranked it up.

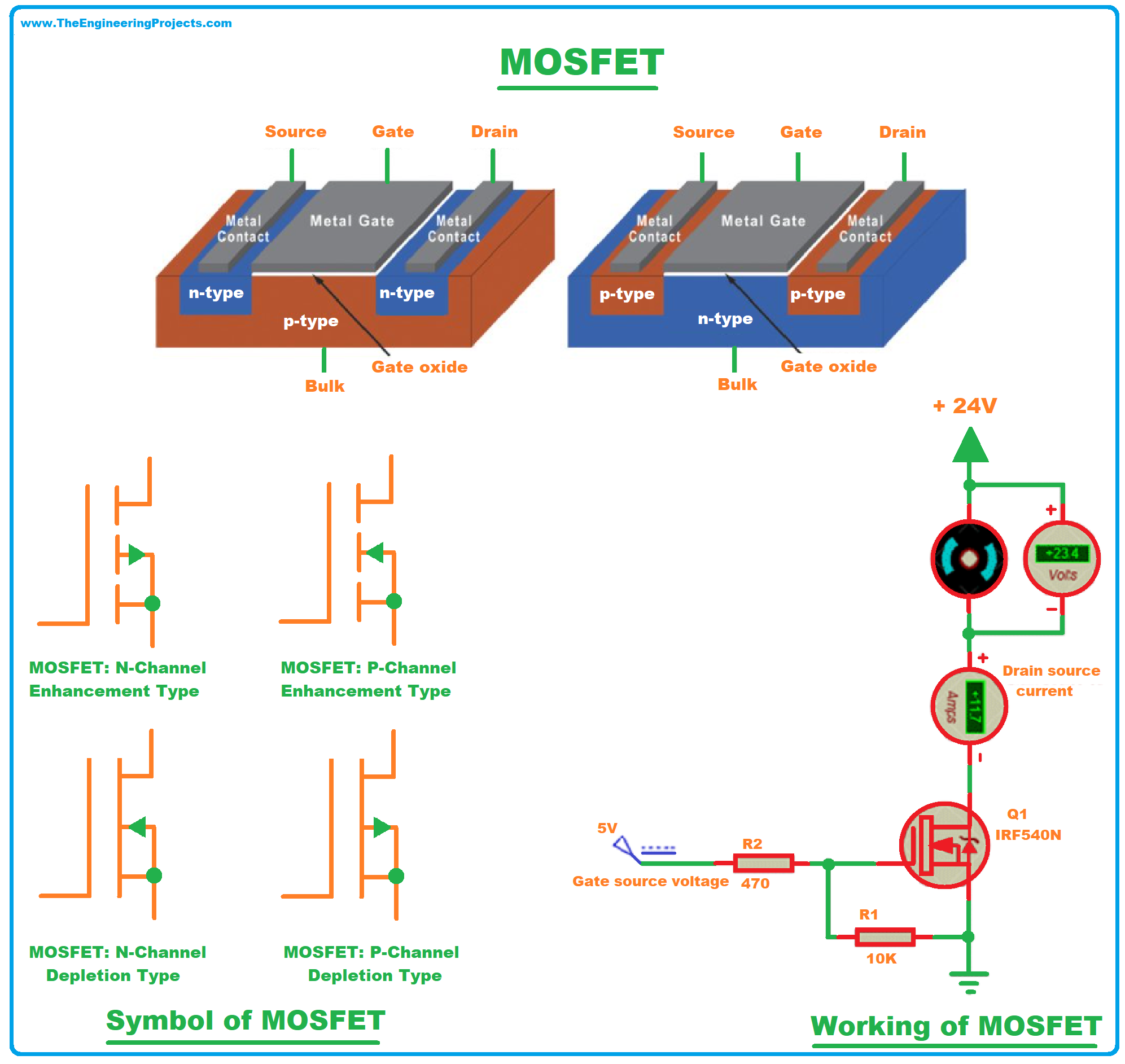

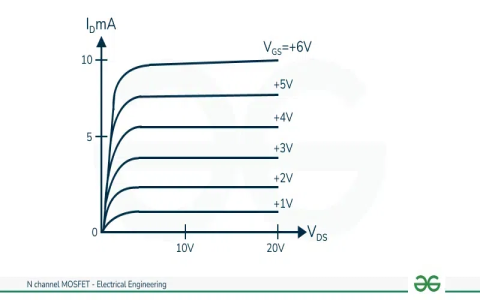

- The “Aha!” Moment: With Vgs fixed at a certain level, as I increased Vds from zero, the drain current Id would increase. It looked kinda linear for a bit, like a resistor (that’s the triode or linear region, I learned). But then, as Vds got higher, the increase in Id started to slow down. And then, past a certain Vds, increasing Vds further barely changed Id at all! The current just sort of flattened out. That was it! That was saturation! The MOSFET was now acting more like a constant current source, controlled by Vgs. The drain current was “saturated”.
I repeated this for a few different Vgs levels. Higher Vgs meant a higher saturated current level. Lower Vgs, a lower saturated current. It was all there on my cheap multimeter. It wasn’t magic, it was just physics I guess, but seeing it happen made all the difference.
So Why Bother With Saturation Anyway?
Once I saw it work, a lot of things started clicking. Before, I mostly thought of MOSFETs as just switches – fully on or fully off. But this saturation thing? That’s where they get interesting for other stuff.
Suddenly, circuits for things like basic amplifiers started to make more sense. You need that controlled current, not just an on/off bang. If you want to make a signal stronger, you operate the MOSFET right in this saturation zone. That small voltage change on the gate could now control a much larger current in a predictable way, but not by just slamming it open or closed.
And it’s not just for making sounds louder. I realized this controlled current behavior is super useful for stuff like linear voltage regulation. You’re not switching hard, you’re carefully throttling the current. Even in things like in-rush current control for big power supplies, or making sure you don’t blow stuff up during a short circuit, having the MOSFET operate in a region where its current is limited (even if temporarily) is key. I guess that’s why they are all over automotive electronics and industrial gear, not just as simple switches but for more clever control.
It’s funny, you can read about this stuff all day, but until you get your hands a bit dirty and see that current plateau with your own eyes, it doesn’t quite stick. For me, that little experiment was way more valuable than hours of just staring at diagrams.
