Alright, let’s talk about transistors and MOSFETs. I’ve spent a good bit of time tinkering with both in my projects, and honestly, at first, they seemed kinda the same – little three-legged things that switch stuff on and off. But once you actually start using them, you figure out pretty quick they have their own personalities.
My First Tryst with Transistors (BJTs)
I remember when I first got my hands on some basic NPN transistors, probably some 2N2222s or BC547s, I can’t recall the exact number now. My goal was simple: turn an LED on and off using a signal from something else, like a button or maybe an Arduino pin way back.
So, I grabbed my breadboard. First thing I learned, and learned it the hard way by frying a couple, is that you absolutely need a resistor on the base pin. Unlike a simple switch, these guys don’t just turn on fully when you touch the base. They need a small current flowing into the base to allow a much larger current to flow from the collector to the emitter.
- I hooked up the LED and its current-limiting resistor to the collector.
- Connected the emitter to ground.
- Then, the tricky part: figuring out the base resistor. I had to look up datasheets (ugh!) and do a little math, trying to give it just enough base current to turn the LED on properly without burning out the transistor.
It felt like I was controlling a valve with another smaller valve. A little current in lets a lot of current through. It worked fine for LEDs and other small loads. But I noticed there was always a small voltage drop across the transistor even when it was fully ‘on’. Not a big deal for an LED, but something I kept in the back of my mind.
Moving on to MOSFETs
Later on, I needed to control something beefier, maybe a small motor or a strip of LEDs. The little BJTs started getting hot, or just couldn’t handle the current. That’s when someone suggested MOSFETs, like the IRF540N.

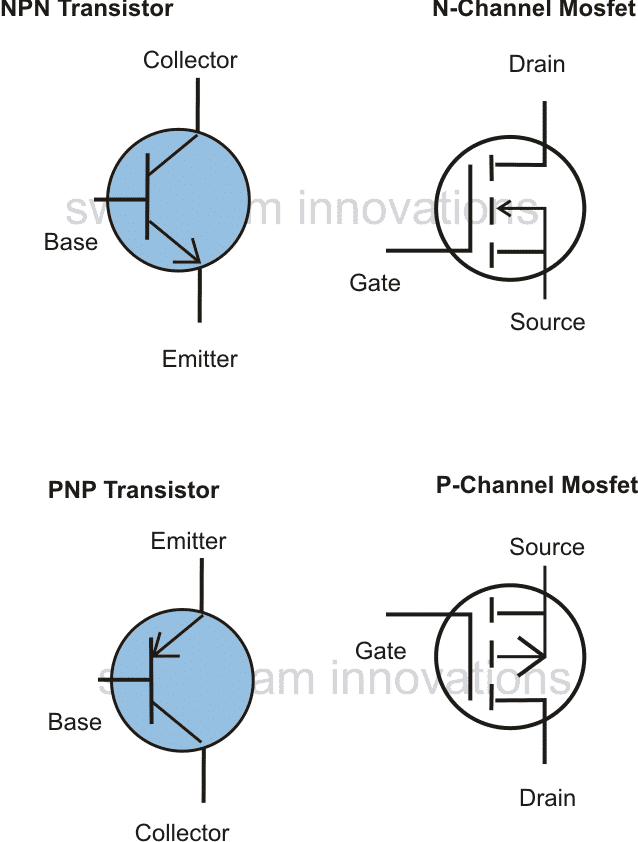

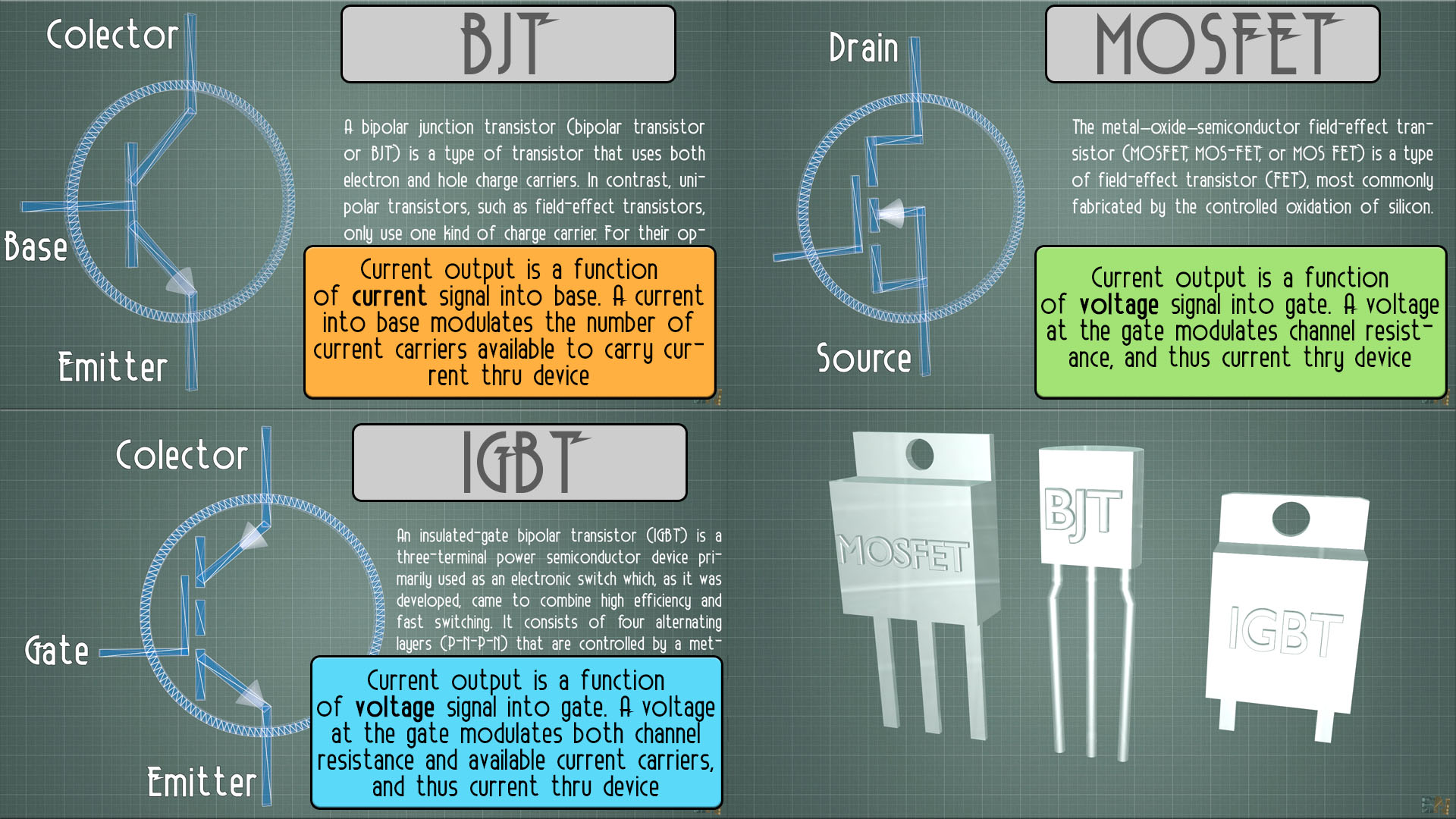

Wiring these up felt different. The pins are Gate, Drain, and Source – kinda like Base, Collector, Emitter, but they work differently. The big revelation? MOSFETs are voltage controlled!
- I connected my motor (with a protection diode, important!) between the power supply and the Drain pin.
- The Source pin went to ground.
- Then, the Gate pin. This was the magic. I could basically connect it directly to my Arduino output pin (sometimes through a small resistor, just good practice or to manage switching speed, but not strictly for current limiting like the BJT).
When I applied 5V to the gate, boom, the motor spun up. When I pulled the gate to ground, it stopped. No complicated base current calculations needed! It felt more like a true digital switch. They also seemed much better at handling higher currents without getting as hot, because their ‘on-resistance’ is usually way lower than the BJT’s saturation voltage drop.
One thing I did learn, though, is that MOSFET gates are super sensitive to static electricity. I zapped one or two just by handling them carelessly on a dry day before I learned to ground myself first. So, you gotta be a bit more careful with them.
So, Which One Do I Grab?
After messing with both, here’s my general take from my workbench:
I reach for a BJT when:
- I’m doing really simple, low-power switching (like a single LED).
- Cost is a major factor (BJTs are often dirt cheap).
- I’m maybe doing some analog stuff (though I don’t do much of that).
- I don’t need super-efficient switching.
I grab a MOSFET when:
- I need to switch higher currents or voltages (motors, solenoids, lots of LEDs).
- I’m driving the switch directly from a microcontroller pin (like Arduino, ESP32, Raspberry Pi) – it’s just easier because they need voltage, not significant current, on the gate.
- Efficiency matters. Less power is wasted as heat when the MOSFET is on.
- I remember to be careful about static!
So yeah, they both look similar but act quite differently in practice. Getting your hands dirty and actually using them is the best way to get a feel for which one fits the job. Both are super useful tools in the electronics toolbox!
