Let me tell you about my recent journey diving into the threshold voltage of MOSFETs. It was quite the learning curve, I must say.
I started this whole thing because I needed to understand how to better control the power efficiency of some circuits I was working on. I read somewhere that the threshold voltage, or Vth, is super important for this. It’s basically the “on” switch for these little transistors, right?

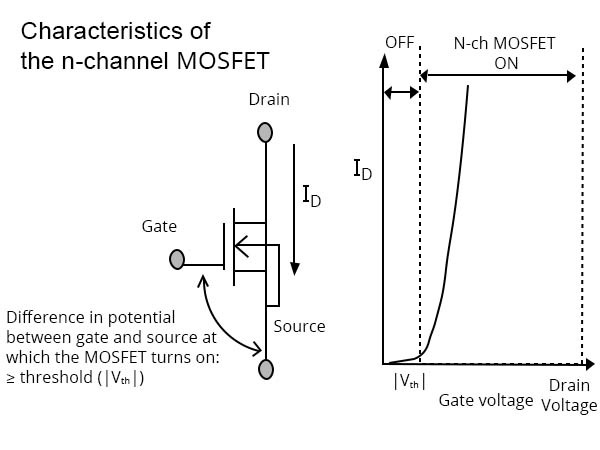

So, I dug into it. My first step was hitting up some online resources – you know, the usual blogs, some academic papers, and a few forum discussions. I quickly realized this Vth thing is a big deal. It’s the minimum voltage you need between the gate and the source of a MOSFET to get it to conduct. Without enough voltage, no current flows, meaning no work gets done.
My next move was to set up a simple experiment. I got my hands on some MOSFETs – nothing fancy, just some standard ones from my toolkit. I hooked them up in a basic circuit, with a power supply, some resistors, and a multimeter to measure everything. The idea was to slowly increase the gate-to-source voltage and see when the current starts to flow between the source and the drain.
I started cranking up the voltage, bit by bit, keeping an eye on the multimeter. And there it was! At a certain voltage, the current suddenly jumped from near zero to something significant. That was my Vth. I repeated this a few times to make sure it wasn’t a fluke, and jotted down the voltage each time.
- First trial: The current started flowing at around 2.1V.
- Second trial: This time it was closer to 2.0V.
- Third trial: Got a 2.2V reading.
Averaging these out, I figured my MOSFETs had a threshold voltage of about 2.1V. It was pretty cool to see it in action, not just read about it.
But I didn’t stop there. I wanted to see how changing things up would affect the Vth. I swapped out the MOSFETs for some different types and ran the experiment again. The threshold voltages were all over the place – some higher, some lower. It was a real eye-opener to how much this can vary.
What I Learned
This whole experiment really drove home the importance of Vth in circuit design. You’ve gotta know this value if you want to use MOSFETs effectively. And it’s not just about turning things on – a lower Vth can mean less power wasted, but it also increases the risk of leakage current, which is a whole other headache.
So, that’s my story about tackling the threshold voltage of MOSFETs. It was a bit of a wild ride, but I learned a ton. And hopefully, my little experiment can help someone else out there make sense of this crucial concept.
