Okay, so today I wanted to mess around with MOSFETs. I’ve seen these things everywhere in electronics, but I’ve never really dug into how to use them properly. So, I figured, why not just jump in and try to get one working?

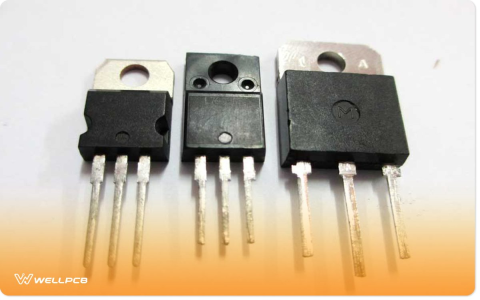

First, I grabbed a random N-channel MOSFET from my parts bin – I think it was an IRF540, but honestly, I didn’t pay too much attention to the exact part number at first. I just wanted to see if I could get the basic concept down.
The Setup
I started by sketching out a super simple circuit. The goal was just to use the MOSFET to switch an LED on and off, nothing fancy. This is what my scribbled plan looked like:
- Power Supply: My trusty bench power supply, set to around 9V. Seemed like a safe starting point.
- LED:A regular old red LED.
- Resistor: A 220-ohm resistor, to keep the LED from, you know, exploding. Placed this between the LED and mosfet’s Drain.
- MOSFET:The star of the show!
- Another Resistor: A 10k-ohm resistor,connect this between Gate and Ground.
- Switch:To control ON/OFF,connect this between Gate and VCC(9V).
Power Up,First Try,Fails
I wired everything up on a breadboard, double-checked my connections (positive to positive, negative to negative… you know the drill), and flipped the switch on my power supply. Nothing. The LED stayed stubbornly dark. Dang it!
Okay, time to troubleshoot. First, I grabbed my multimeter and checked the voltage across the LED. Zero volts. That meant the MOSFET wasn’t letting any current through. I checked the voltage at the gate of the MOSFET… also pretty much zero. Hmm.
Then it hit me – I’d forgotten something crucial. I needed a way to actually turn on the MOSFET! I’d connected the gate, but I hadn’t given it any positive voltage to actually activate it.
Moment of Success
Flipped the switch. Boom! The LED lit up. Sweet, sweet victory! It was such a simple thing, but it felt great to see it actually work.I tried switched the switch several * LED blinked!
So, what did I learn? MOSFETs are basically voltage-controlled switches. You apply a voltage to the gate, and it allows current to flow between the drain and source. Don’t apply a voltage, and it’s like the switch is open. Simple, but powerful stuff!
This was just a baby step, of course. There’s a ton more to learn about MOSFETs – different types, how to choose the right one, driving them with microcontrollers, all that jazz. But for now, I’m pretty happy with my little LED-switching circuit. It’s a start!
