Okay, guys, let’s talk about my little project today – upgrading my airsoft gun with a MOSFET.

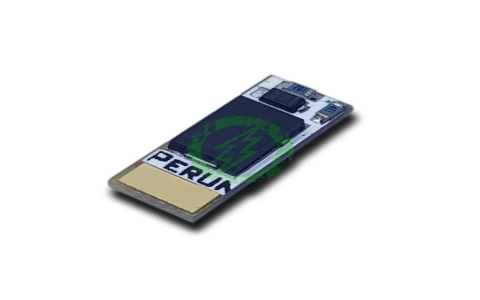

First, I grabbed my airsoft gun and all the tools I thought I’d need. Screwdrivers, pliers, soldering iron – the usual suspects. I also made sure I had the MOSFET unit itself, of course. I opted for a basic one, nothing too fancy, just something to protect my trigger contacts and maybe give me a slight boost in trigger response.
Disassembly Time
I started by taking apart the gun. This is always a bit nerve-wracking, to be honest. You gotta keep track of all those tiny screws and springs. My advice? Take pictures as you go! Seriously, it’s a lifesaver when you’re putting it all back together.
I carefully removed the gearbox, which is where all the magic happens. Once I had it out, I opened it up. Be careful here, because things can kinda spring out at you. Again, pictures are your friend! I located the trigger contacts – they’re usually pretty obvious, little metal bits that touch when you pull the trigger.
Soldering Fun
Now for the slightly trickier part: soldering. I’m no expert, but I’ve done a bit of it before. If you’re totally new to soldering, maybe watch a few videos first. It’s not rocket science, but it does take a little practice to get a good, clean connection.

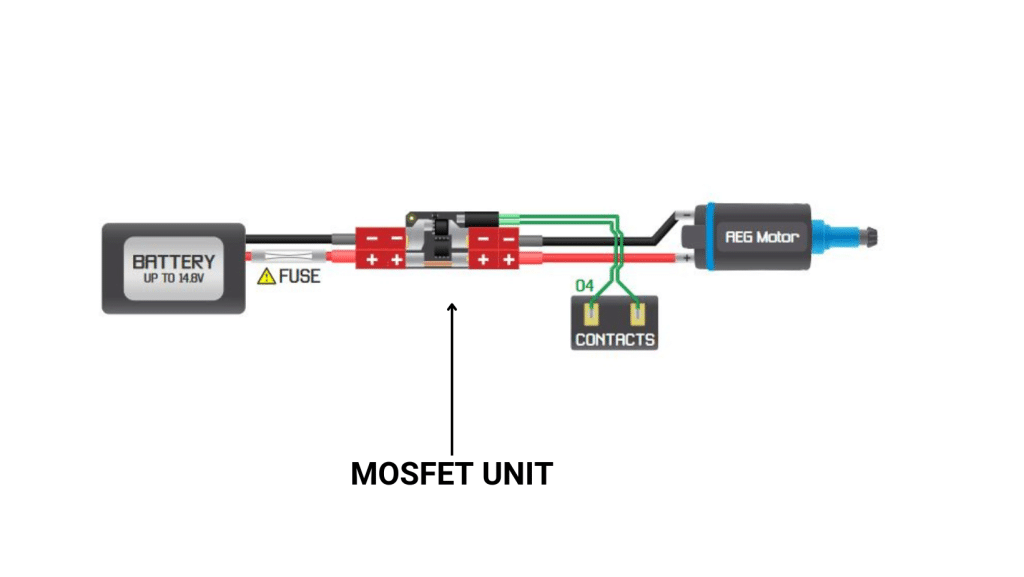

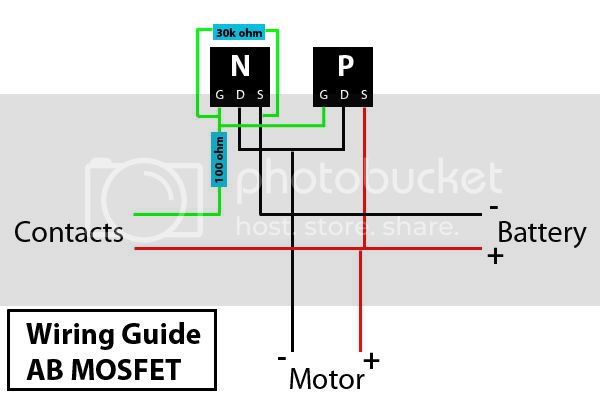

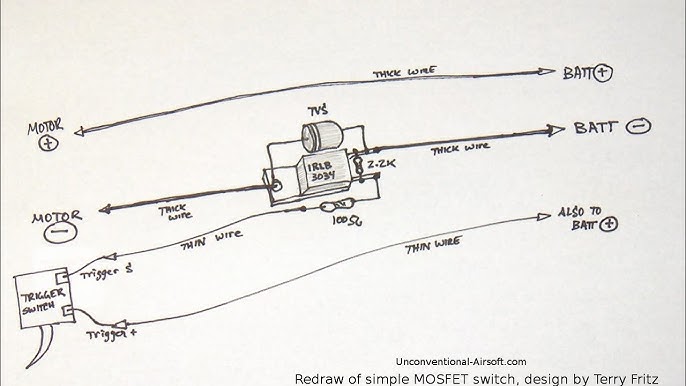

I carefully soldered the MOSFET wires to the appropriate points on the trigger contacts and motor. The MOSFET instructions usually have a pretty clear diagram, so I just followed that. Double-check your connections! A bad solder joint can cause all sorts of problems.
Putting It All Back Together
Once everything was soldered, I carefully reassembled the gearbox, making sure everything was in its right place. Then I put the gearbox back into the gun and screwed everything back together. This is where those pictures I took earlier really came in handy.
Testing, Testing…
Finally, the moment of truth! I connected a battery and… it worked! The trigger felt a little snappier, which was nice. More importantly, I knew my trigger contacts were now protected from arcing, which should extend the life of my gun.
Overall, I’d say this was a pretty successful little project. It wasn’t too difficult, and it definitely made a noticeable improvement to my gun. If you’re thinking about adding a MOSFET to your airsoft gun, I’d say go for it! Just take your time, be careful, and don’t be afraid to ask for help if you need it.
