Okay, so the other day I was messing around in my workshop, and I stumbled upon something pretty interesting about MOSFETs. You know, those little electronic switches that are everywhere in our gadgets? Well, it turns out they have this neat feature called a body diode, and I got curious about it.
So, I grabbed a MOSFET from my parts bin – I think it was an N-channel one, but don’t quote me on that. I hooked it up to my trusty multimeter, just to see what’s what. Now, I’ve played with these things before, but I never really paid much attention to this body diode thing.
First, I did the basic check. You know, the one where you test it like a regular diode. I put the red probe on the drain and the black probe on the source, expecting no conduction, because that is how it should be initially, and guess what? My multimeter showed some conduction! It was like a little “aha!” moment. I did recall something about MOSFETs having a diode built-in, but seeing it in action was something else.
Then, I flipped the probes around – black on the drain, red on the source. This is where the magic happened. The multimeter showed a voltage drop, kind of like what you’d expect from a regular diode. It wasn’t much, around 0.7V or so, but it was definitely there. This confirmed that there was indeed a diode lurking inside the MOSFET, chilling between the source and drain.
Here is what I did exactly:
- Grabbed a MOSFET: I just picked one from my stash. It was an N-channel type, the most common kind.
- Set up the multimeter: I switched it to the diode testing mode. This is a must for checking out these diodes.
- Initial check: I connected the red probe to the drain and the black one to the source. Expected nothing, but got a small surprise – some conduction!
- Reversed the probes: Black to the drain, red to the source. This was the real test, and boom – a voltage drop like a typical diode.
- Played around a bit more: I tried different MOSFETs, just to be sure. Same results. It was cool to see the consistency.
Why This is Useful

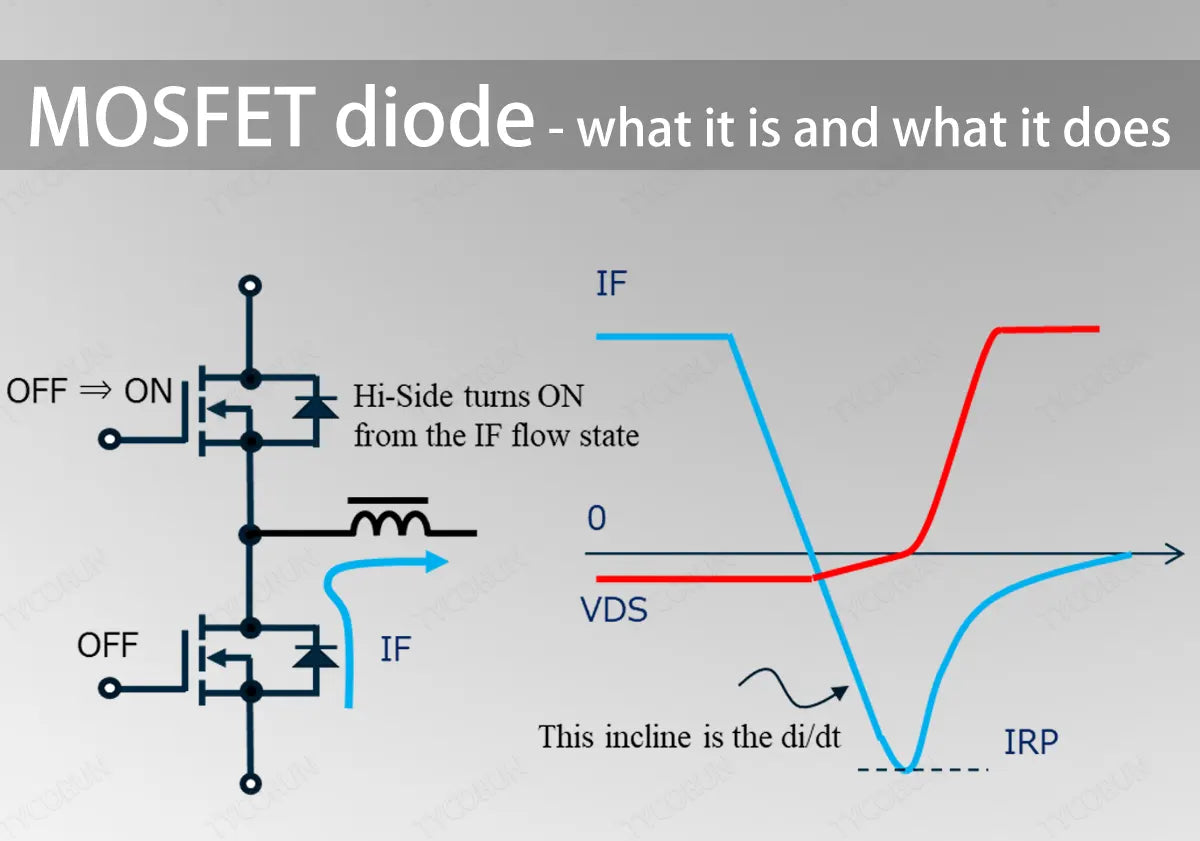

Now, why is this body diode thing useful? Well, from what I’ve gathered, it is pretty handy in circuits where you need to deal with reverse voltages. Like, imagine a motor control circuit. When the motor’s magnetic field collapses, it can create a voltage spike in the opposite direction. This body diode helps to safely discharge that spike, protecting the MOSFET and other parts of the circuit. It is like a little safety valve.
This whole experiment got me thinking about all the neat little things hidden inside everyday components. It is like there is a whole world of electronics magic that we usually do not see. I am definitely going to dig deeper into this stuff. Who knows what other cool things I will find?
So, yeah, that is my little adventure with the MOSFET body diode. It was a fun reminder that there is always something new to learn, even with the most basic components. Stay curious, folks!
