Today, I messed around with some MOSFETs, specifically looking at the differences between the N-channel and P-channel types. It was quite a hands-on day, so let me walk you through what I did.
First off, I grabbed a bunch of N-channel and P-channel MOSFETs from my toolbox. I wanted to see how they actually perform, rather than just reading about them. I set up a simple circuit on my breadboard. Nothing fancy, just enough to get these MOSFETs working.
I started with the N-channel MOSFETs. I connected the source, gate, and drain terminals, and then I began testing. I noticed that the N-channel MOSFETs were pretty quick and efficient. I could switch them on and off rapidly, and they handled the current like a champ. These things are fast! It felt like they were made for speed. I could see why people use them in high-frequency stuff.
- Connected the N-channel MOSFET to the circuit.
- Tested the switching speed and current handling.
- Observed their high efficiency and speed.

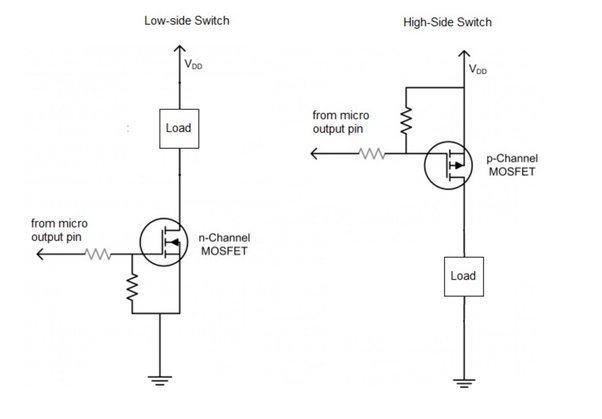

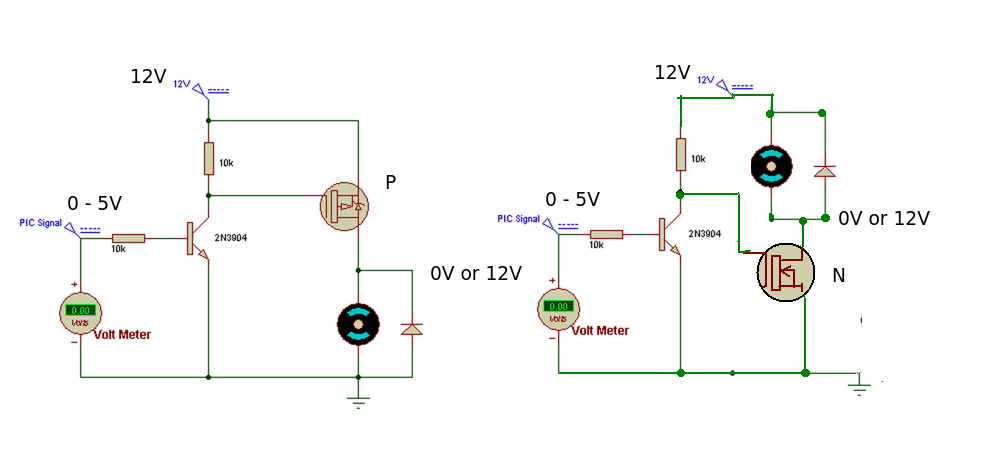

Next up, I moved on to the P-channel MOSFETs. I hooked them up in a similar way, but I had to adjust a few things because of their reverse doping profiles. It was a bit trickier to get them to work initially, but once I got the hang of it, it was fine. They were definitely slower compared to the N-channel ones. It felt like I was waiting a bit longer for them to switch. I mean, they worked, but it was noticeably different. I also played around with high side switching, and yeah, the P-channel MOSFETs were easier to use there.
- Set up the P-channel MOSFET in the circuit.
- Adjusted the setup due to reverse doping.
- Noticed the slower switching speed.
- Experimented with high side switching.
Observations and Realizations
After spending the whole afternoon on this, I realized why N-channel MOSFETs are often preferred for applications where efficiency is key. They are just faster and more efficient because electrons move a lot quicker than holes. It’s like comparing a sports car to a truck—both get you there, but one is way quicker. The P-channel MOSFETs, on the other hand, are simpler to use in some cases, especially when you’re dealing with high side switching. They have their place, but they’re not as speedy.
In the end, it was a productive day. I got a much better feel for how these MOSFETs work in real life. I learned that those N-channel ones are the real deal when you need speed and efficiency. P-channels are okay, but if I were to design something that needs to be really fast and efficient, I’d definitely go with N-channel.
