Well, let me tell you, this n-channel mosfet thing is quite something. You see, it’s all about using those little electrons to make a channel for current to flow. When you turn this mosfet on, those electrons can zoom around like they’re in a race. Makes everything work quicker and smoother.
Now, if you think about it, n-channel means those electrons are the stars of the show. They move better than those other particles called holes, which are just not as speedy. So, when you have this n-channel mosfet, it’s like having the best runners in a race, you know?
How it’s Built

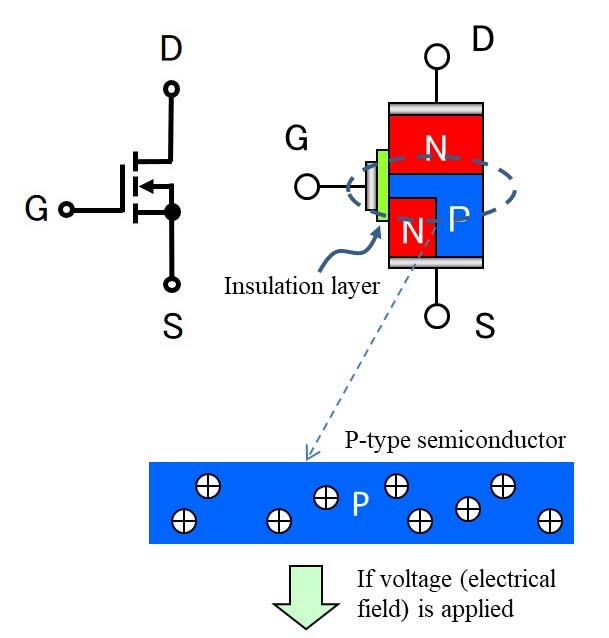

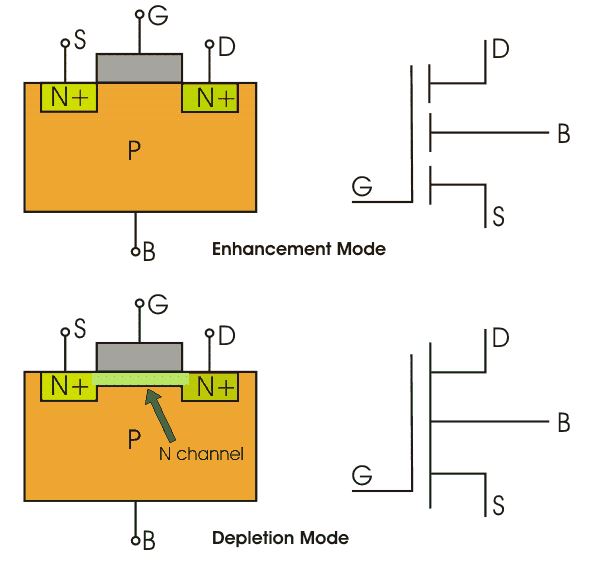

- The source and drain of this mosfet are made of n+ regions, and it has a p region for the body. Kind of like a sandwich, where the filling is the important part.
- When you say “source,” you’re talking about where those electrons come from. They come rushing in when you give it the go-ahead.
Efficiency and Power
There’s these fancy companies like Infineon, and they’ve made special n-channel mosfets to help everything work better and save power. It’s all about making things smaller and more powerful, which is what everyone wants nowadays.
Now, if we dive a little deeper, these mosfets can handle current and voltage in a way that’s pretty easy to understand. You just need to know how much current is flowing and how much resistance is in the channel. It’s like knowing how fast water flows through a pipe. The more open the pipe, the more water can get through!
Switching Speed
One of the best things about these n-channel mosfets is how fast they can switch on and off. There aren’t any pesky minority carriers to slow things down. It’s just those electrons doing their job. The speed really depends on how fast you can pump charge in and out of the mosfet’s capacitances. It’s like filling up a bucket with water – the quicker you pour, the faster it fills.
So, in short, this n-channel mosfet is quite a handy little device. It lets electrons dance around, making electricity work better and faster. It’s got the right parts and does its job well without getting in the way.
And there you have it! All you need to know about this n-channel mosfet without getting lost in the fancy talk. Just remember, it’s all about those speedy electrons and how they help everything run smooth.
]
