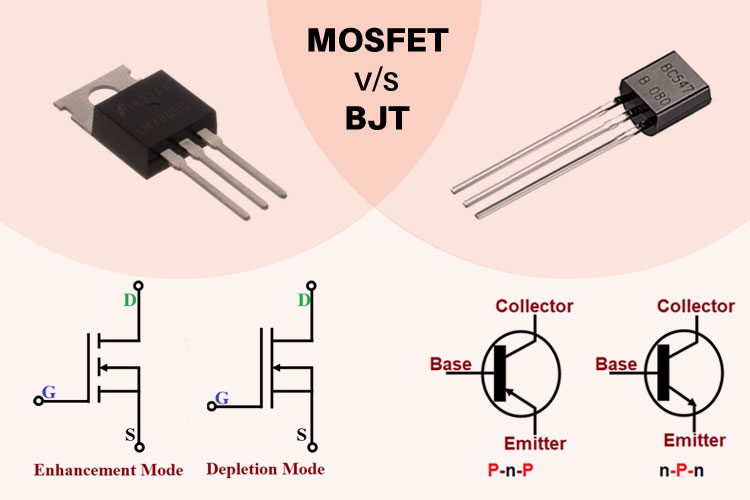

Okay, so, I’ve been messing around with electronics for a while now, and let me tell you, the world of transistors is a wild ride. Today, I wanna talk about two big players: MOSFETs and BJTs. I did some tinkering with both, and here’s the lowdown on what I found.

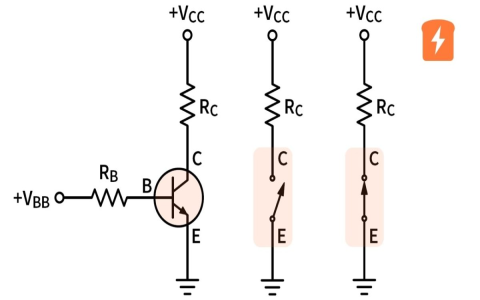

First off, I grabbed a bunch of BJTs – you know, those Bipolar Junction Transistors. These things have been around forever, since like the 1940s! I remember reading somewhere they were invented at Bell Labs. Anyway, I hooked them up in a simple circuit, just to see how they behave. The idea with BJTs is they use both electrons and holes to conduct current. I had to forward bias both junctions to really get them going, especially in that saturation mode. That’s when they’re like, “Alright, I’m fully on!” – kind of like flipping a light switch. It’s pretty cool how much current you can get flowing from the emitter to the collector.
Next up, I played around with MOSFETs – Metal Oxide Semiconductor Field Effect Transistors. Now, these are a bit different. I used them in a CMOS setup, which is common these days. What I noticed is that they’re slower than BJTs. I mean, it makes sense when you think about it. They’ve got these extra bits, like parasitic capacitances, that slow down the switching speed. Plus, they take up more space on a chip because you need two MOSFETs in a CMOS configuration.
Comparison Time
- Speed: BJTs are faster. I could see the difference when I tried to switch them on and off quickly. The MOSFETs were just lagging a bit behind.
- Size: BJTs seem to pack more punch for their size. I guess that’s why they say MOSFETs have lower integration density.
- Current Handling: In saturation, BJTs can really push a lot of current. It’s impressive, really. MOSFETs, not so much, at least in my simple experiments.
So, I did a bit more digging and found out about JFETs too, which are another type of field-effect transistor. They’re different from MOSFETs in how they control the channel, using an electric field across a reverse-biased PN junction. I haven’t messed with JFETs yet, but they sound interesting.
In the end, it’s all about what you need for your project. I found that BJTs are great when you need speed and a lot of current, while MOSFETs might be better when you’re not in a hurry and need something that fits in a smaller space. It’s a trade-off, like everything in life, I guess. But hey, that’s the fun of experimenting, right? You learn something new every time.
