Okay, so I wanted to mess around with MOSFETs and actually see those IV curves I always read about in textbooks. You know, get a real feel for how these things behave. So, I grabbed a few components and set out to do just that.
Setting Up the Experiment

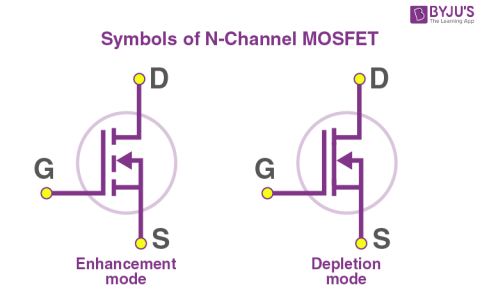

First things first, I needed a plan. I decided to build a simple circuit to test an N-channel MOSFET. Here’s what I gathered:
- A MOSFET: I picked an IRF540N, just a common one I had lying around.
- Resistors: I used a couple: one for the gate (around 1k ohms) and a higher-power one for the drain (I experimented with a few values).
- Power Supplies: I needed two adjustable DC power supplies. One for the gate voltage (Vgs) and one for the drain-source voltage (Vds).
- Multimeters: At least two, to measure the drain current (Id) and the drain-source voltage (Vds). I actually used three so i didn’t have change wiring.
- Breadboard and Wires: For easy connections, of course.
I wired everything up on the breadboard. It’s pretty straightforward:
- Connect the MOSFET’s source to ground.
- Connect the gate resistor from the gate to one of the power supplies (this is your Vgs supply).
- Connect the drain resistor from the drain to the positive terminal of the other power supply (this is your Vds supply).
- Connect the multimeters. One ammeter in series with the drain resistor to measure Id, and one voltmeter across the drain and source to measure Vds.
Taking the Measurements
Now for the fun part! I started taking measurements, carefully and systematically. Here’s the process I followed:
- Set Vgs to Zero: Initially, I set the gate voltage (Vgs) to zero. This means the MOSFET should be off, and no current should flow.
- Vary Vds: I slowly increased the drain-source voltage (Vds) from 0V to about 10V, taking readings of both Vds and the drain current (Id) at various points. I made a note of these in my notebook.
- Increase Vgs: Then, I increased Vgs by a small amount (say, 0.5V or 1V) and repeated the process of varying Vds and recording Id and Vds.
- Repeat: I kept repeating step 3, increasing Vgs in small increments and taking measurements, until I reached the maximum Vgs I wanted to test (within the MOSFET’s ratings, of course!).
It may take some time, it’s a pretty manual process, but it’s essential to go slow and be accurate. Make sure the resistor won’t burn.
Plotting the Curves
Once I had all my data,I plot them on a graph. I used a spreadsheet program, but you could do it by hand too.
- X-axis: Drain-Source Voltage (Vds)
- Y-axis: Drain Current (Id)
- Multiple Curves: Each curve represents a different Gate-Source Voltage (Vgs).
And there it was! The classic MOSFET IV curves, right before my eyes. I could clearly see the different regions of operation: the cutoff region (where Id is essentially zero), the triode/linear region (where Id increases linearly with Vds), and the saturation region (where Id levels off and becomes relatively constant).
It was awesome to see how increasing Vgs pushed the curves upwards, allowing more current to flow for a given Vds. I also got the saturation current and voltage.
What I Learned
This whole experiment was a fantastic learning experience. It really solidified my understanding of how MOSFETs work. Just wanted to share my little experiment in case anyone else is curious about getting hands-on with these components!
