So I messed around with some MOSFETs today, you know, those little electronic switches. I wanted to see how they work, so I grabbed a few and started poking around.
First, I had to figure out which pin was which. There are three of them: Gate, Drain, and Source. I found this guide online that showed how to tell them apart, which was pretty handy. It took a little bit of study, but I got the hang of it.

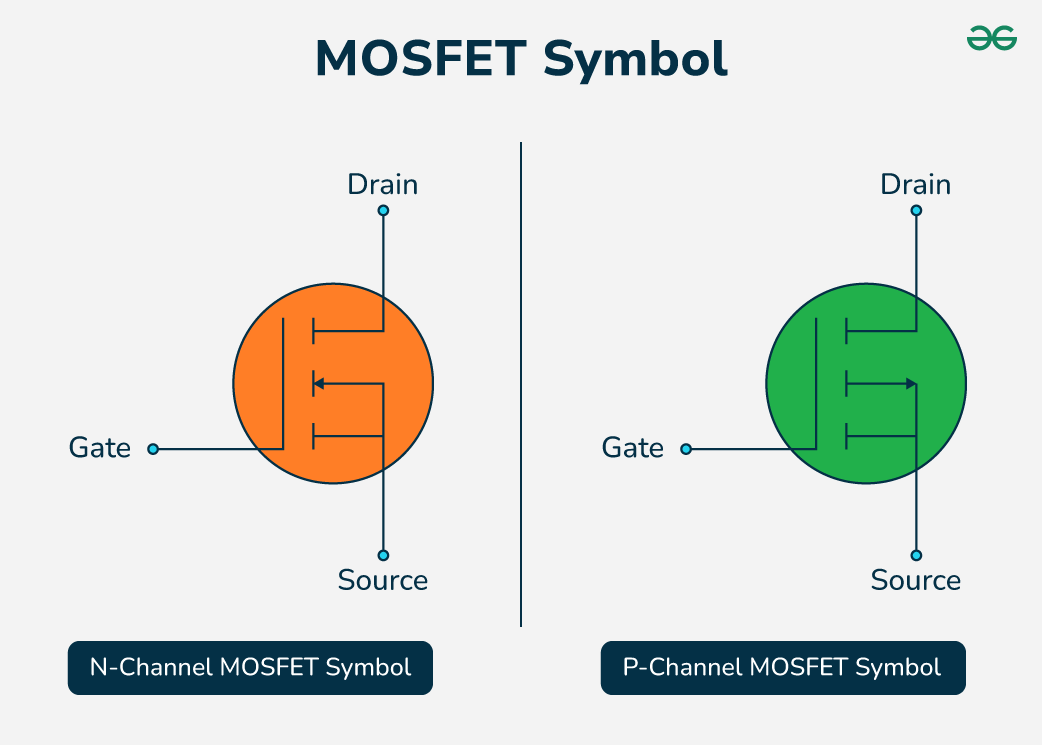

Figuring out the Pins
- Gate: This is like the on/off switch.
- Drain: This is where the power goes out to the thing you’re controlling.
- Source: This is usually connected to the ground. Or the positive side, if you are using a p-channel one.
I hooked up the source to the ground, the drain to a little LED light (through a resistor, of course, I didn’t want to fry anything), and the gate to one of the output pins on my little development board.
Then I started playing with the voltage on the gate pin. I found out that these things called “N-channel” MOSFETs need a positive voltage on the gate to turn on. It’s like flipping a light switch. When I applied some voltage, the LED lit up. When I removed the voltage, it turned off. It felt like magic, I could control the flow of electricity!
Playing with Voltage
I did some reading and learned that there’s a limit to how much voltage you can put between the drain and the source. It’s called the “drain-source breakdown voltage.” Go over that, and you might let the magic smoke out. I made sure to stay well below that limit.

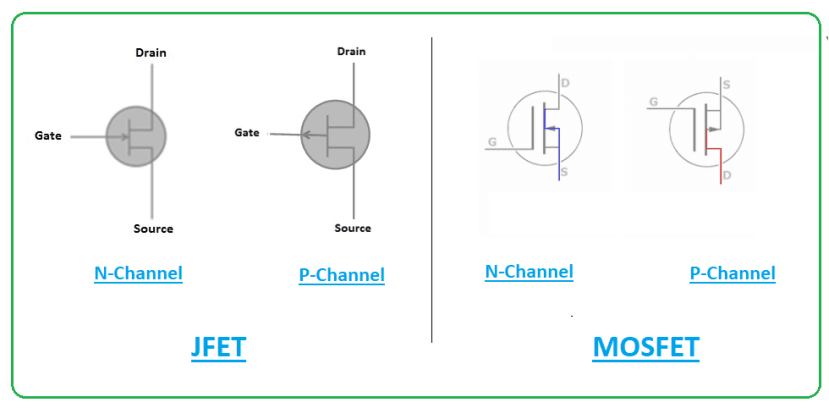

Then I tried something called a “P-channel” MOSFET. It’s the opposite of the N-channel one. It turns on when the gate voltage is low. I swapped it into my circuit, and sure enough, it worked the other way around. When I applied voltage to the gate, the LED turned off, and when I removed the voltage, it turned on. It is the complete opposite but also interesting.

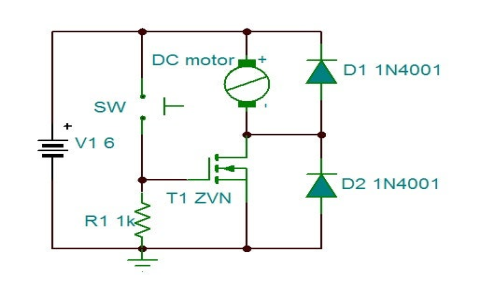

I also learned that there are different types of MOSFETs for different jobs. Some are good for switching big currents, like in power supplies or motor controllers. Others are tiny and packed together on computer chips. It is so cool how they pack so many of them onto one chip.
Different Types
- Power MOSFETs: For controlling big currents.
- MOSFET ICs: Lots of tiny MOSFETs on one chip.
So yeah, that was my day with MOSFETs. I learned a lot about how they work and how to use them. It was pretty fun, and I can’t wait to try them out in some real projects. Maybe I’ll build a robot or something, who knows? The main takeaway for me was that MOSFETs are like tiny, controllable gates for electricity. And understanding how to open and close those gates lets you do all sorts of cool stuff, I think I will use them to do more interesting projects.
