Okay, so, I recently got involved in a project that required me to calculate the current of a MOSFET. I had a rough idea about it, but it had been a while since I did that stuff. So I needed a refresher. I went online to search for the MOSFET current equation, and let me tell you, it was a bit overwhelming at first.
I started by looking at some datasheets, you know, the usual stuff. I found something called “GATE CHARGE” and it was mentioned that I could calculate current using this. It seemed simple enough, Current = Charge frequency. I thought, “Okay, I can work with this.” I used this method to multiply the maximum gate charge with the frequency that I would use.
But then I stumbled upon this constant ‘K’ in some equations. They said it was derived from some characteristic equation of E-MOSFET, and the formula looked like K = ID/(VGS-VGS(th))^2. I remember this formula! It’s all about the drain current in relation to gate-source voltage and the threshold voltage. I was a little bit confused about how to get the data of this ‘K’, so I continued to search for some other information.

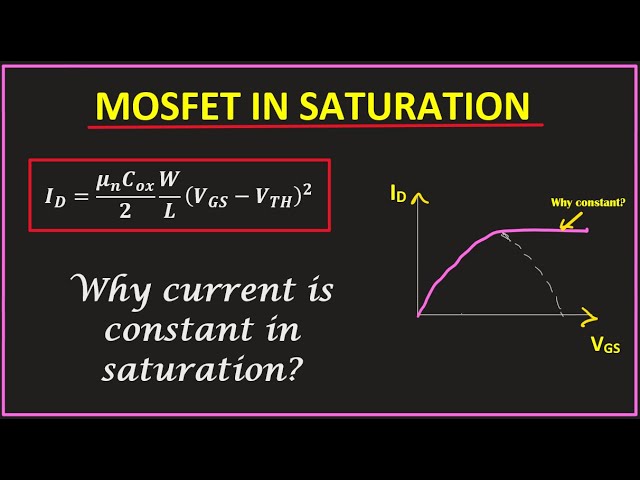

As I dug deeper, I found that there are different formulas for different operating regions of the MOSFET. For instance, when the MOSFET is in the saturation region, there’s a specific expression for drain current, and that is ID=μWC2L(VGS−VT)2. It involved some constants and parameters related to the device itself. This made me realize that I needed to understand which region my MOSFET was operating in. I mean, there’s this thing about channel pinch-off that I needed to consider. You know what I mean? It’s when VDS>VGS−VT.
Then, I read about this “Gate Charge Method.” It’s about forcing a fixed test current into the gate. It seemed interesting, but I was more focused on getting that current equation right. I also found a MOSFET calculator online which is very useful! It helped to get the drain current easily by inputting some data. It made me think about simplifying the process for myself.
I even looked into some presentations and materials. They talked about the channel current and how it flows in a certain direction. One thing that caught my attention was this equation: Iy =W•QN(y)•vy(y), and then they said drain current is equal to minus channel current. I tried to apply this to the problems I had, it made me know more about the MOSFET.
There’s also something called the “Linear Region I/V Equation” where they talk about integrating differential voltage and assuming a constant current along the channel. It sounded a bit complex, but I guess it’s useful for a deeper understanding of MOSFET operation. So I tried to get more about this equation, hoping I could use this to solve my problems.
I also needed to figure out how current flows from drain to source with a positive drain voltage, and how that relates to Vgs and Vds. I mean, that’s the basic stuff, right? I also saw this line in one of the pages online, saying, “Our MOSFET Calculator aids in optimizing circuit designs and understanding MOSFET operation.” I felt like that was exactly what I needed. It mentioned analyzing parameters like Threshold Voltage and Drain Current.
So, after all this searching and reading, I started to piece things together. I used the formulas and the information about the operating regions to come up with my calculations. It was a bit of trial and error, but I eventually got the hang of it. I even started to appreciate those online calculators a bit more. They can be quite handy, especially when you’re dealing with a lot of different parameters.
In the end, I managed to calculate the MOSFET current for my project. It wasn’t as straightforward as I initially thought, but it was definitely a good learning experience. I mean, who knew there was so much to consider when calculating MOSFET current? It’s not just about plugging numbers into a formula. You really need to understand what’s going on with the device itself.
Anyway, that’s my little adventure with MOSFET current equations. I hope my experience can help someone out there who’s going through the same thing. Just remember to take it step by step, and don’t be afraid to dig a little deeper into those datasheets and online resources. You’ll get there eventually!
