Okay, let’s talk about something I bumped into while messing around with MOSFETs the other day, this thing people call the Miller effect. It wasn’t like I was looking for it, it just sort of happened.
My First Encounter
I was building a simple switching circuit, you know, turning a load on and off pretty fast with a MOSFET. I had my signal generator hooked up to the gate, sending a nice square wave, expecting the MOSFET to snap on and off cleanly. But when I put the oscilloscope probe on the gate, things looked… weird.
Instead of a clean rise from low to high voltage on the gate, there was this funny flat spot, like a plateau, right in the middle of the rising edge. The voltage would start going up, then pause for a bit, then continue rising to the final voltage. The same thing happened on the falling edge, just mirrored. That definitely wasn’t the clean square wave I was putting in!
Digging In – What’s Going On?
So, I started thinking. What could cause the gate voltage to stall like that during switching? It had to be related to the MOSFET itself changing state, from off to on or on to off. My first thought went to capacitance. Everything has capacitance, right?

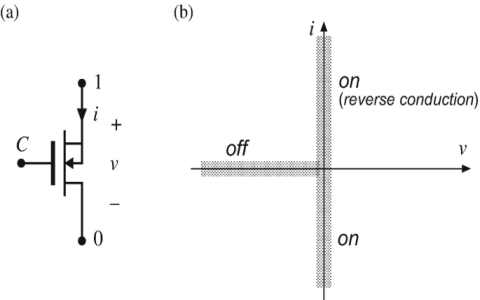

I remembered that MOSFETs have internal capacitances between their terminals:
- Gate-to-Source capacitance (Cgs)
- Gate-to-Drain capacitance (Cgd)
- Drain-to-Source capacitance (Cds)
Now, Cgs is always there, just needs charging. But that Cgd, the one between the gate and the drain, seemed like the likely culprit. Why? Because the drain voltage swings wildly when the MOSFET switches! It goes from the high supply voltage (when off) down to nearly zero (when on), and vice versa.
The “Aha!” Moment – Amplified Capacitance
Here’s the tricky part I figured out by poking around and reading a bit. When the MOSFET is switching, that Cgd capacitance has to be charged or discharged. But because the drain voltage is changing at the same time as the gate voltage, and often by a much larger amount, it creates this weird effect.
Think about it: You’re trying to push charge onto the gate capacitor (Cgs and Cgd). As the gate voltage rises, the MOSFET starts to turn on, and the drain voltage begins to fall. This falling drain voltage effectively “pulls” charge through Cgd, making it seem like Cgd is much bigger than it actually is during that transition period. It’s like trying to fill a bucket (the gate capacitance) while someone is simultaneously making the bucket bigger (the effect of the changing drain voltage through Cgd).
This amplification of the gate-to-drain capacitance (Cgd) during switching is basically the Miller effect. The driver circuit feeding the gate has to supply extra current to charge this effectively larger capacitance, and that’s what causes the voltage to plateau. The driver is dumping current, but the voltage doesn’t rise much because all that current is going into charging the “Miller capacitance”.
So What? Practical Impact
Why does this matter? Well, that plateau directly translates to slower switching speeds. The MOSFET spends more time in the active region (neither fully on nor fully off) while charging/discharging this Miller capacitance. Slower switching means:
- More switching losses (power dissipated as heat during the transition).
- Limits on the maximum operating frequency of your circuit.
So, yeah, I started by seeing a weird shape on my scope and ended up understanding this Miller effect thing. It’s basically the gate-drain capacitance acting like a much bigger capacitor right when the MOSFET is switching states, because the drain voltage is swinging big time. Definitely something you gotta account for when you’re designing circuits that need to switch fast. Just charging Cgs isn’t the whole story!
