Alright folks, grab your coffee, let’s talk about the IRF3205 MOSFET. The other day I fried another power stage on my bench, smelled awful. Figured it was time to actually understand these little black chips I keep tossing into circuits like candy.

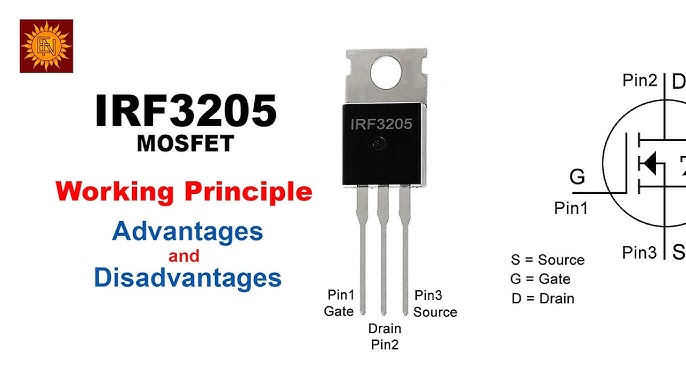

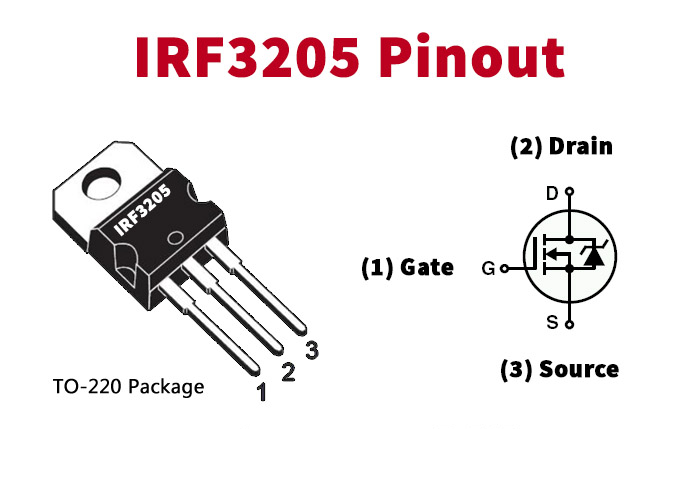

First thing? Pulled that little sucker out of the half-melted board. Tiny black rectangle with three legs. Scratched my head – what even is a MOSFET? Knew it was like a switch, but the datasheet? Might as well be ancient scrolls. Needed basics, fast.
Grabbed my laptop instead of reaching for another component. Searched “IRF3205 basics”. Didn’t need fancy theory, just the meat and potatoes. Here’s the crash course I scribbled down while figuring it out:
- Main Job: A switch controlled by electricity on the “gate” pin. No gate juice? Switch off. Give it juice? Switch flips on hard.
- Big Muscle: This dude handles serious power. Like, hook-it-up-to-a-car-battery serious. 55 volts? No sweat. 110 amps? Yeah, it can, but you gotta cool that sucker down. Don’t just poke it and hope.
- Gate Grip: Needs a decent shove to wake up. Like 2 to 4 volts on the gate pin (“Vgs threshold”). My little Arduino pins? Barely enough! Learned that the hard way – low voltage means it barely turns on, gets super hot, and cooks breakfast on your PCB.
- Resistance Blues: When it’s on, it’s not perfect. Got some internal resistance (“Rds(on)”). For this guy? Tiny number, like 0.008 Ohms. Sounds small, but pump 20 amps through it? Bam, heat city. Math time: Heat = Current² Resistance. Even small numbers get big fast. Learned to respect that math.
- Speed: Can flip on/off pretty darn fast. Good for making DC power smooth or switching stuff quickly.
Right, specs memorized? Not enough. Needed to feel it. Bench time.
Wired up a simple circuit: Power supply -> IRF3205 -> Big fat power resistor. Hooked my scope probe across the resistor. Put my finger near the MOSFET (ready to yank it away!). Sent a tiny square wave signal to the gate with my function generator.
Seeing the scope trace jump instantly high and low with my signal? That’s the switch flipping on and off. Measured the voltage drop across it when on – tiny, just like the datasheet said. Pushed the current slowly. Got it warm, noted when my finger couldn’t stay on it anymore. Confirmed that gate voltage needed to be above 3V for it to behave nicely.
This thing? Beast. Useful for big power jobs. But learned the key lessons: Respect the gate threshold voltage. Manage the heat. Understand that tiny resistance turns into real heat under load. Basics locked in, ready to not fry the next one… probably.
