Alright, let me tell you about how I got tangled up trying to understand MOSFETs today. Seriously, the names they throw around are ridiculous. Enhancement mode? Depletion mode? N-channel? P-channel? It’s like alphabet soup trying to hurt your brain.
My day started with coffee and, honestly, just wanting to fix a problem I was having with a circuit. I kept seeing people mention “MOSFETs,” so I figured I should really know what I’m messing with. Simple goal: Understand the basic types.
Step 1: Facing The Jargon Wall
I opened up like, five browser tabs. Every single website looked like it was written by robots for other robots. WTF is “depletion mode”? And “enhancement mode”?? It sounded like fancy vacuum cleaners or gym routines. I felt my eyes glazing over after ten minutes. My brain was getting fried.
Step 2: Trying To Untangle The Mess

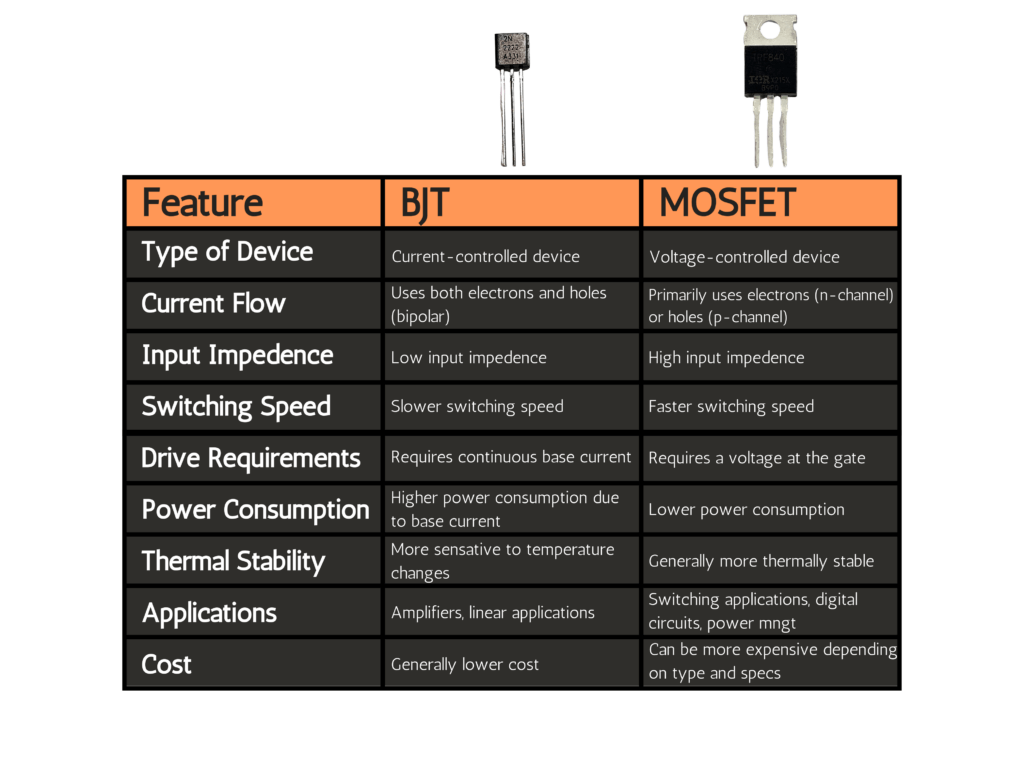

I figured I needed a different approach. Forget the fancy words, I just wanted to know: what makes one MOSFET different from another? How do you pick one?
I started jotting down the stuff that seemed to matter:
- Does it need voltage to TURN ON or to TURN OFF? (This ended up being the biggie)
- Is it mostly for positive power (N-channel) or… negative? (P-channel, apparently)
- What kind of power can it handle? Baby ones for signals or beefy ones for motors.
Step 3: Making My Own Cheatsheet
Pencil met paper. No fancy software, just scribbles. I needed to see them side-by-side:

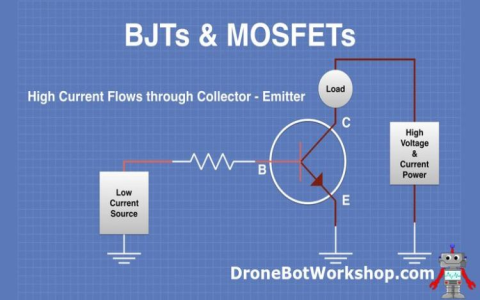

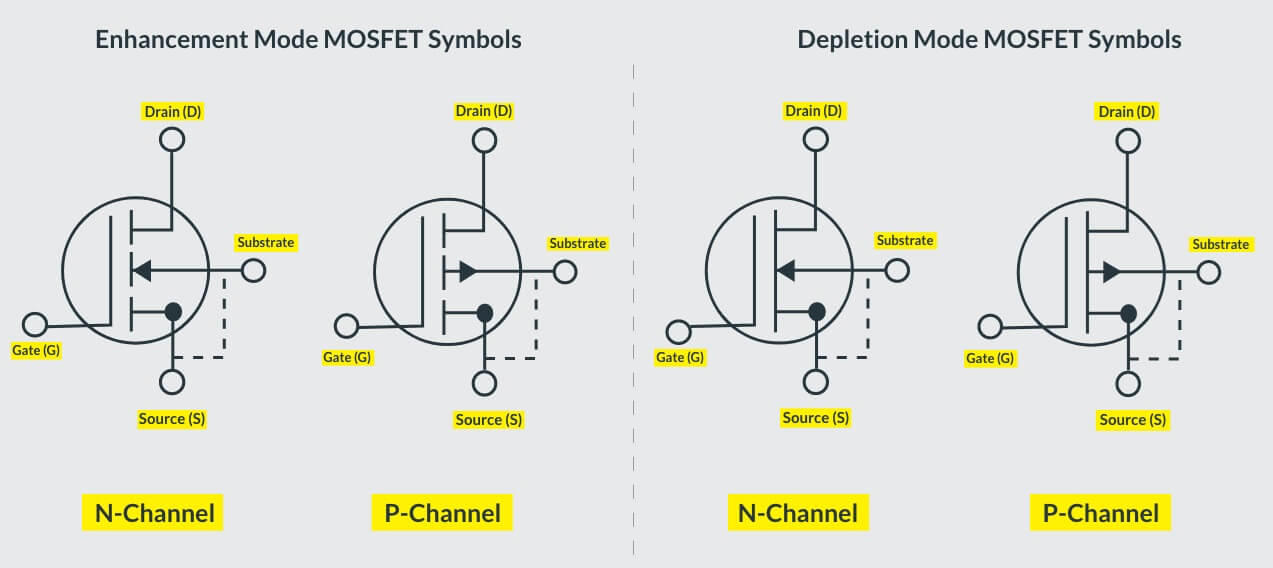

The Main Players:

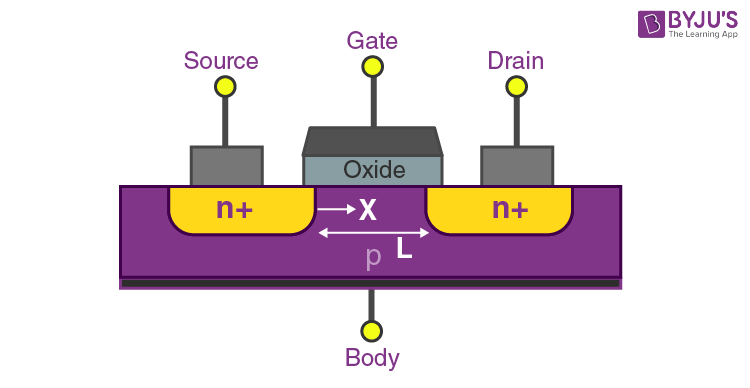

- The Needy One (Enhancement Mode N-Channel): This dude sits there like a brick wall blocking electricity. Give it some positive juice on its special “gate” pin, and BAM, it opens up the highway. Most common MOSFET I see folks using in projects.
- The Leaky One (Enhancement Mode P-Channel): Flip it. This one naturally lets electricity flow. Slam it with some negative vibe (or zero it out) on the gate to shut it down. Handy for controlling stuff directly connected to the positive power line.
Then I found mentions of older types, like:
- The Always-On (Depletion Mode N-Channel): Comes with the highway open. Shock it with negative gate voltage to build a wall and block the flow. Seems kinda backwards nowadays.
- The Always-Off (Depletion Mode P-Channel): Naturally blocked. Needs positive gate voltage to start flowing. Even rarer, like finding a unicorn at RadioShack.
Stared at my scribbles. Realized the BIG difference is that first thing I wrote: does gate voltage switch it ON or switch it OFF? For modern stuff, Enhancement Mode (voltage turns it ON) rules, especially the N-Channel flavor.
Step 4: The “Oh, Right!” Moment
Everything started clicking. Why folks mostly talk about “N-Channel Enhancement MOSFETs”? Because you poke it with positive voltage (which is easy to do with our common chips) and it lets the party start. Simple turn-on. That’s what I needed for my busted circuit! No wonder the other types felt dusty and weird. They just aren’t the go-to anymore for regular tinkering.
Wrapping Up
So, how many types? Honestly, four types, but really only two matter most of the time: Enhancement N-Channel (the workhorse) and Enhancement P-Channel (its less common, but useful sidekick). Forget depletion mode unless you’re reading ancient scrolls. The key is that first question: does voltage OPEN the gate or CLOSE it? That unlocked it for me. Keep it simple, ignore the noise.
Remembering them now feels like counting fingers: Thumb & Index finger do most the work (N & P Enhancement), the other fingers (the Depletion ones) are just kinda… there.
