Alright, let’s talk about these MOSFET things, you know, the little thingamajigs they use in them electric doohickeys. I ain’t no fancy engineer, but I’ll tell ya what I know, the way I understand it.

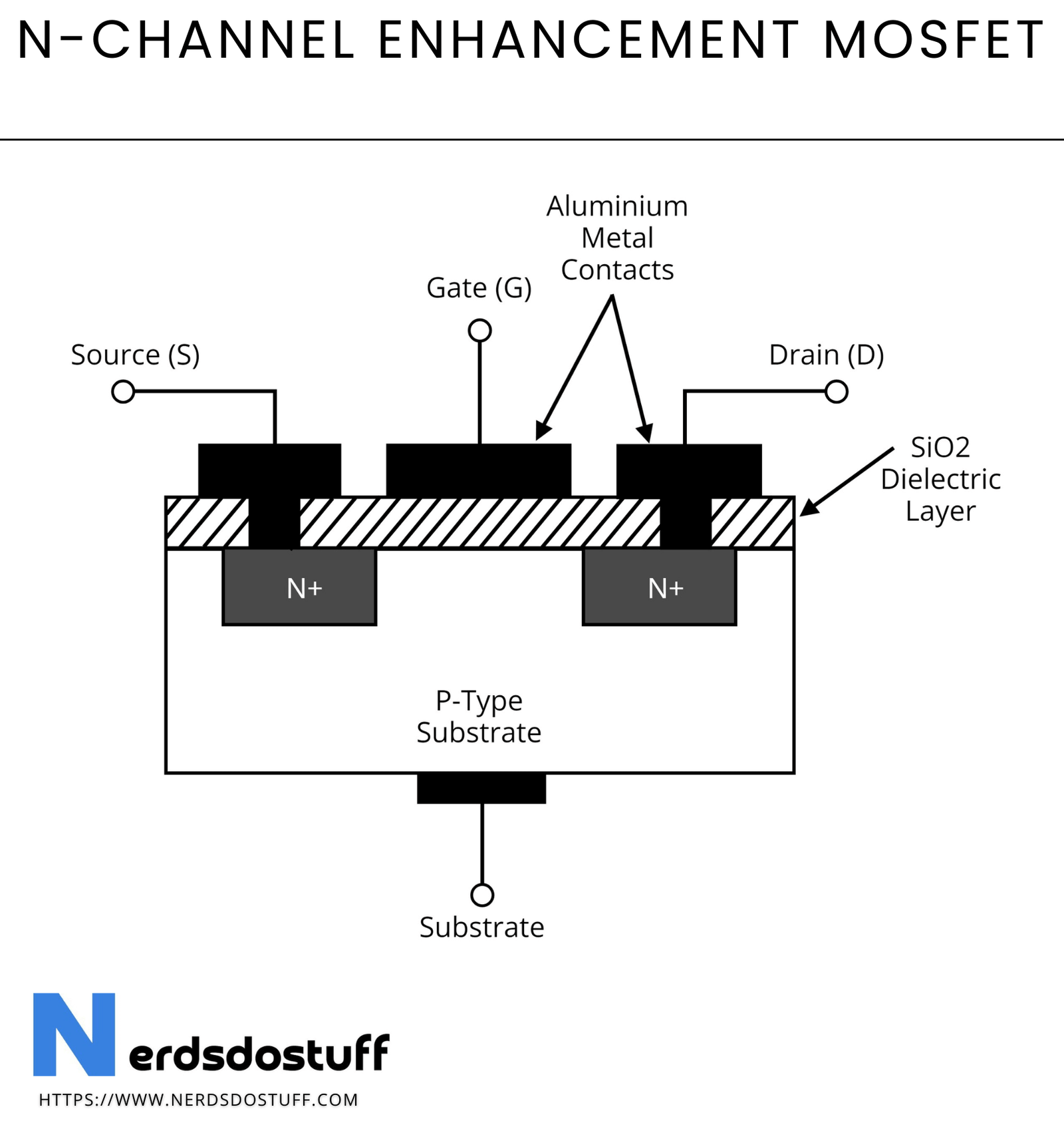

First off, we got these enhancement MOSFETs. Now, think of it like a water pipe. When you don’t turn the faucet (that’s the gate voltage, they call it), no water flows, right? Same here. This enhancement MOSFET, it’s like a pipe that’s blocked. Nothin’ goes through until you give it a little juice, a little push on that gate. Then, bingo! The water starts flowin’, or in this case, the electric stuff starts movin’.
They use these things everywhere, you know. Them phone chargers, the little adapters you plug into the wall, all sorts of stuff. They say these are low power MOSFETs, which I guess means they don’t use a whole lot of electricity, which is good, ’cause nobody wants a big electric bill, right?
- No voltage, no current. Like a closed pipe.
- Give it some voltage, and bam! Current flows.
- Good for them low power thingies, saves ya money on the electric bill.
Then there’s these other fellas, the depletion MOSFETs. Now, these are a bit different. Think of it like this: the pipe’s already got water flowin’ even without you touchin’ the faucet. That’s how these depletion thingies work. They’re already on, see? Current’s flowin’ even when you ain’t doin’ nothin’ to the gate.
But here’s the kicker. To turn this one off, you gotta give it a negative voltage. It’s like you’re not just turnin’ off the faucet, you’re kinda suckin’ the water back a bit. They call it a “negative gate voltage,” sounds fancy, but that’s all it is.
They talk about this “threshold voltage” too. That’s just the amount of juice you need to give it to make it work, or to turn it off, dependin’ on which one you’re usin’. For the enhancement one, you gotta give it a positive voltage to turn it on. For the depletion one, you gotta give it a negative one to turn it off. Simple as that.
And then there’s this N-channel and P-channel talk. Don’t get yer head all twisted up about it. Think of it like this: N-channel is like turnin’ on the water with a positive twist of the faucet, and P-channel is like turnin’ it off with a negative twist. That’s how I see it, anyway. The N-channel, it lets the juice flow when you give it a positive voltage, and the P-channel, it lets the juice flow when you give it a negative voltage, more negative than that threshold thing they talked about.
So, to recap, enhancement MOSFETs are like a closed pipe that needs a push to open, and depletion MOSFETs are like an open pipe that needs a pull to close. And them N-channel and P-channel things just tell ya which way to twist the faucet, positive or negative.
Now, I ain’t sayin’ I know everything about these MOSFETs, but that’s the gist of it, the way I see it. They’re important little fellas, these MOSFETs. They make all our electric stuff work, and that’s good enough for me.
They use fancy words and all, but it ain’t that hard to understand when you break it down. Just gotta remember the pipes and the faucets, and you’ll be alright.
And that’s all I got to say about that. Hope it helps ya understand these things a little better.
