Man, high side MOSFET drivers been kicking my butt lately. You know that awful delay between your controller saying “turn on” and the dang FET actually switching? Yeah that. Messed up my whole power circuit testing cause everything was outta whack. Timing looked like a drunk turtle running through molasses.
Started Out Real Messy
First, I plugged in my usual gate driver chip like I always do. Thought it was fine. Booted up the circuit, slapped the scope probes on… and nothing. Well, not nothing – took forever for the gate voltage to climb up! We’re talking microseconds here, which is basically years for my circuit. Power supply screamed, FET got hotter than a jalapeno, whole thing smelled like regret.
My First Fix Attempt? Pathetic.
Okay, panic mode. Grabbed that trusty little gate resistor – you know the one, usually like 10 ohms? Thought “Maybe it’s too slow?” So I hacked in a smaller one. Big mistake. Jerky turn-on, nasty ringing like a cheap doorbell circuit, and almost blew the driver chip sky high. Guess what? Delay barely budged. Fantastic.
Three Things That Actually Worked
Sweating buckets now. Took a break, stared at the mess, and finally dug into why this delay garbage happens. Seems that gate driver charging the FET’s gate is just sluggish up there on the high side. So I tried forcing it harder. Three ways saved my bacon:

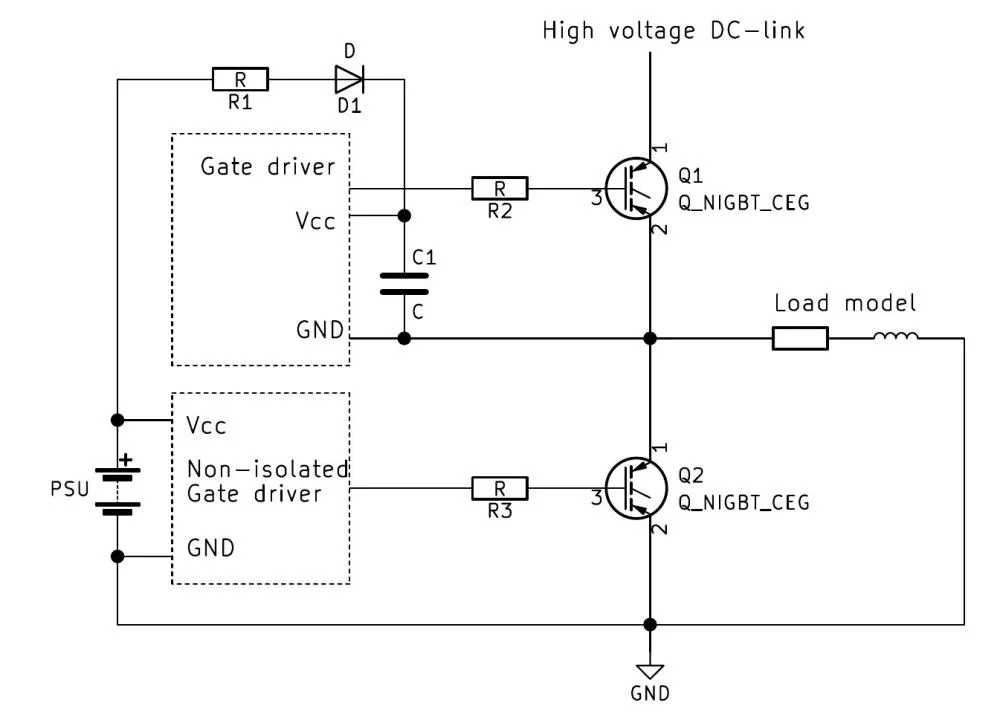

- Juiced-Up Gate Driver: Ditched the wimpy driver I had. Found a chunky boy one with a built-in pump thing inside it – a charge pump, they call it? Sounds fancy, but basically it shoves voltage onto the gate way harder and faster than my old one could. Difference was instant! Like, clockwork.
- Told That Resistor to Chill: Okay, so earlier swapping that resistor was dumb. But! Turns out my gate resistor network was still part of the problem. Was using big resistors for steady state… but slow! Added a sneaky little diode right across one of the slower path resistors. Now when turning ON, juice bypasses the resistor entirely, slamming into the gate full force. Snap! Way quicker charge. Off-time still controlled for safety, but ON was finally fast.
- Cut the Wires, Dummy: Shut up, past me. Looking at my board layout was painful. Gate driver sitting way over here, MOSFET sulking way over there, and the trace connecting them looked like a lazy river. That trace has its own stupid capacitance, adding delay! Took out the wire cutters, grabbed some thick wire, and hacked in the shortest possible jump between driver output and MOSFET gate. Shortest path possible. Bam! Less crap for the driver to charge, faster switching. Simple stuff.
Finally Seeing Sweet, Sweet Switching
After throwing these three fixes into the fire? Hallelujah. Slapped the probes on again. Triggered the input… and WHAM! Gate voltage shot up like a scared cat. Delay shrunk down to almost nothing, just a tiny blip my scope could barely catch. Turn-off? Same thing. Clean drop, no hanging around. Circuit stopped cooking itself, power supply hummed happily instead of shrieking.
Truth? Ain’t no magic. Just gotta understand what’s holding back that voltage slam onto the gate and beat it into submission. Faster driver, smarter path for the juice when it matters most, and keep everything tight. Saved my project from the bin. Hope this saves yours!
