Okay, so I’ve been messing around with different transistor types for a new project, and I stumbled upon this whole FinFET vs. MOSFET thing. It sounded kinda complicated at first, but after digging in, it’s actually pretty cool. Here’s how I got my head around it.

Related Posts

Arduino and MOSFET Not Working? Solve It Fast With These 2 Checks

How to Use 1rfz44n Mosfet Step by Step Easy Installation Guide

MOSFET Airsoft Guide: What Is It and Why Use One?

Still asking What is a MOSFET Airsoft? We explain this important tech in easy to follow words.

Choosing Between FinFET vs MOSFET: A Beginners Guide 2024.

Starting with the Basics (MOSFETs)

First, I needed to really understand how a regular MOSFET works. I already knew the very basic. It’s like a switch, right? You apply voltage to the gate, and it lets current flow between the source and drain. I visualized it like a water valve. More voltage at the gate, more water (current) flows. Easy peasy, I’ve used these a million times.

The Problem with Shrinking

Then, I started reading about how they’re making these things smaller and smaller. That’s great for fitting more transistors on a chip, but it creates problems. Specifically, when MOSFETs get tiny, the gate loses control. It’s like the water valve gets leaky, and current starts flowing even when it’s supposed to be off. This “leakage” wastes power and generates heat. Not good.

Enter the FinFET

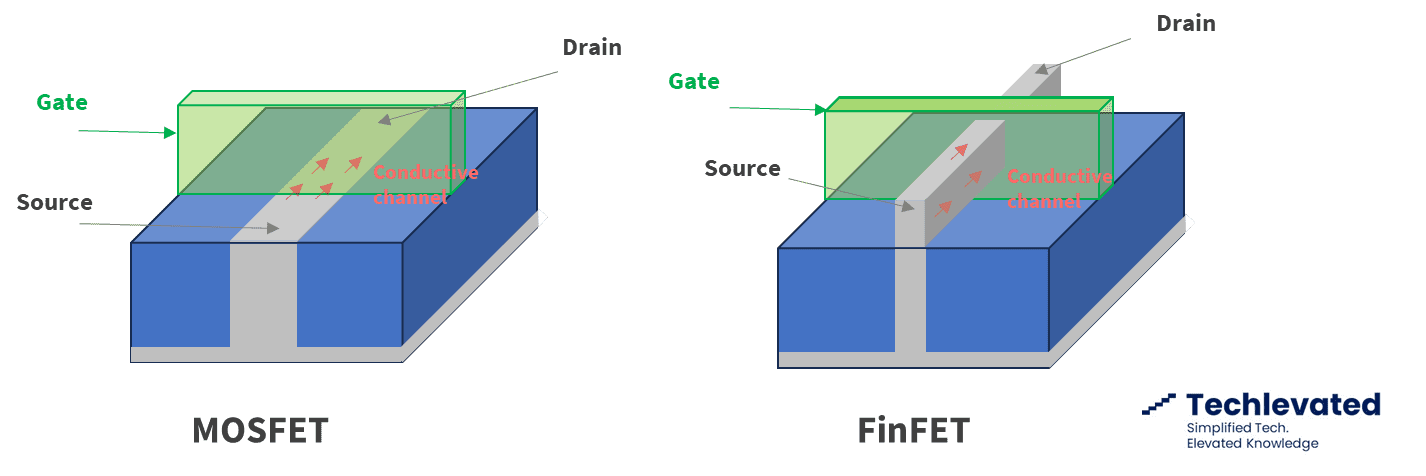

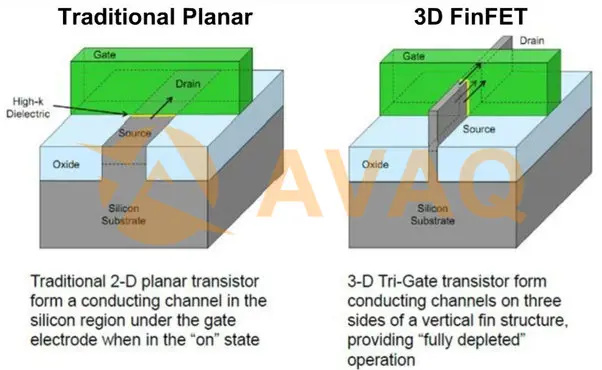

This is where FinFETs come in. The “Fin” part is the key. I watched some videos and looked at diagrams, I can see it’s a 3D structure. Instead of a flat gate, the gate wraps around a thin “fin” of silicon. It’s like having multiple gates controlling the same channel, so you have way better control, I think.

So, I understood, in my opinion, the FinFET’s design basically solves the leakage problem of tiny MOSFETs. It’s like having a super-tight water valve that doesn’t leak, even when it’s really small.

Putting it All Together

  • MOSFETs: Simple, good for less demanding stuff, but struggle with leakage when they get really small.
  • FinFETs: More complex, but way better control over current flow, especially in tiny, high-performance chips. It like a pro tool!

I’m planning on using FinFETs in my project. I need the performance and power efficiency, and even the price will be higher, I think it is worth it, better than old MOSFET.
