Alright, so I’ve been tinkering with MOSFETs again. You know how it is, got a new project idea, this time trying to drive some hefty LEDs, and of course, things didn’t just magically work. The main issue? Heat. My little MOSFET was getting way hotter than I was comfortable with.
My First Brush with MOSFET Heat
I figured, okay, maybe it’s the current, or perhaps I need a bigger heatsink. Standard stuff. I slapped on a slightly larger piece of aluminum I had lying around. It helped a bit, but not enough. The thing was still cooking itself. I even double-checked my calculations for current limiting resistors, thinking I’d messed that up. Nope, all seemed fine on paper. It was frustrating, to say the least. I almost binned the whole idea, thinking these particular LEDs were just too much for a simple setup.
Digging into Datasheets – What’s this R_DS(on)?

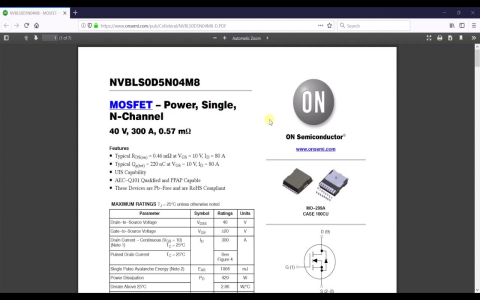

So, back to the datasheets I went. Staring at pages of graphs and numbers. Then I kept seeing this R_DS(on) value. I’d seen it before, of course, but honestly, I usually just glossed over it. It’s always some tiny number, like 0.0-something ohms. How much trouble could that really cause? Well, turns out, quite a bit. It’s one of those things that seems insignificant until it bites you.
I started actually reading the notes, the conditions. It wasn’t just one number; it changed with gate voltage, with temperature. This was getting more complicated than I first thought. Typical.
The Lightbulb Moment: Power Loss is Real
Then it clicked. R_DS(on) is the ‘on-state resistance’. Basically, when the MOSFET is supposed to be a perfect switch, it’s still got a tiny bit of resistance between the drain and source. And we all know P = I²R. That little ‘R’ might be small, but if your ‘I’ (current) is big enough, the power dissipated as heat can shoot up real fast. Suddenly, my hot MOSFET made a lot more sense. It wasn’t magic smoke; it was physics I was ignoring.
Practical Checks and What I Found
I didn’t have any fancy gear to measure R_DS(on) super accurately on the bench. But I did have a couple of different MOSFETs.
- MOSFET A: The one I was using, let’s call it “Old Faithful” (more like “Old Toasty”). Its datasheet said an R_DS(on) of around, say, 70 milliohms (0.07 Ohms) under my conditions.
- MOSFET B: Another one I found in my parts bin, a bit pricier. Its R_DS(on) was listed as closer to 10 milliohms (0.01 Ohms).
I was pushing about 3 amps through my LEDs.
For Old Toasty: (3A)² 0.07Ω = 9 0.07 = 0.63 Watts. That’s a fair bit of heat for a small package with a dinky heatsink.
For MOSFET B: (3A)² 0.01Ω = 9 0.01 = 0.09 Watts. Wow, big difference!
So, I desoldered Old Toasty (carefully, it was still warm from the last test run!) and put in MOSFET B. The difference was night and day. MOSFET B barely got warm to the touch. The LEDs were just as bright, but the drama was gone.
The Gate Voltage Trap
Another thing that caught me out early on, not just in this project but in others, is the gate voltage (Vgs). The R_DS(on) value you see in big print on the datasheet? That’s usually at a specific, often optimal, gate voltage, like 10V. If you’re trying to drive it directly from a 3.3V or 5V microcontroller pin, you might not be turning the MOSFET fully “on”.
I learned to check the graphs in the datasheet that show R_DS(on) versus Vgs. If your gate drive is too wimpy, your R_DS(on) will be higher than the headline spec, meaning more heat, less efficiency. Sometimes you absolutely need a gate driver IC to give it that proper kick, especially for fast switching or higher currents. I’ve had circuits mysteriously underperform until I realized my gate drive was anemic.
Lessons Learned (The Hard Way)
So, yeah. That R_DS(on) spec. It’s not just some trivial detail for the academics. It’s a make-or-break number for power applications. If you’re switching anything more than a tiny bit of current, you absolutely have to pay attention to it.
My takeaways from all this messing about:
- Lower R_DS(on) is generally your friend if you want to avoid heat and wasted power.
- Always check the R_DS(on) at your actual operating gate voltage (Vgs), not just the best-case scenario in the datasheet.
- Remember that R_DS(on) increases with temperature. So if it starts getting hot, it can get even hotter. Good thermal design is still key.
- Sometimes, spending a little extra on a MOSFET with a significantly lower R_DS(on) can save you a lot of headaches with heatsinking and reliability down the line. It did for me, anyway.
It’s funny how these little parameters, the ones you barely notice when you’re starting out, end up being so critical. Live and learn, I guess. And try not to burn your fingers too often in the process.
