Alright, let’s talk about these Bipolar Transistors and MOSFETs. Now, I ain’t no fancy engineer, but I can tell ya a thing or two about ’em in plain English, ya hear?
First off, what in the tarnation are they? Well, they’re like little switches, see? They control the flow of electricity, kinda like a faucet controls water. You turn it on, the water flows; you turn it off, it stops. Same idea with these transistors, but with electricity instead of water.

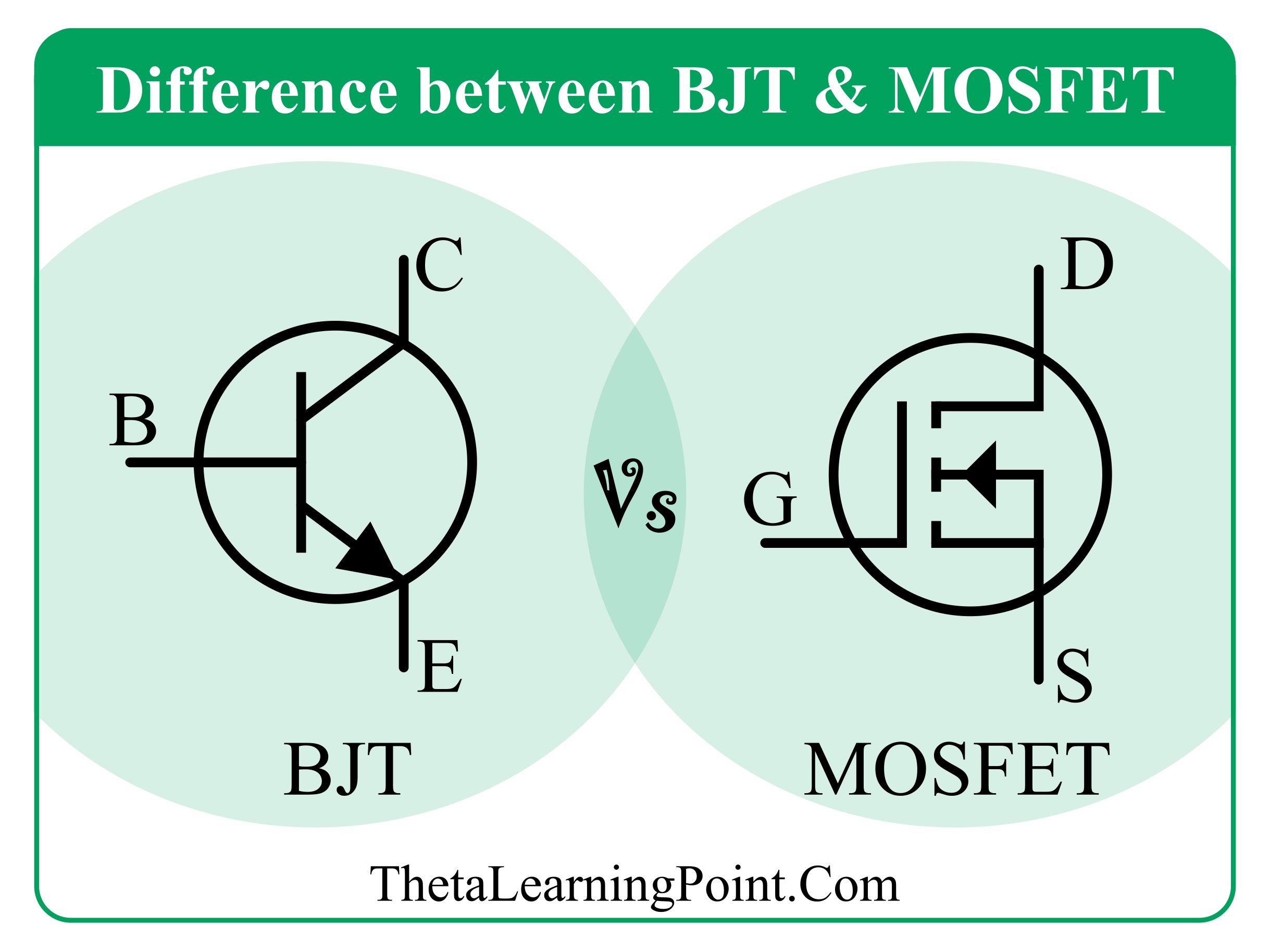

Now, there are two main types we’re gabbing about: Bipolar Junction Transistors, or BJTs for short, and Metal Oxide Semiconductor Field Effect Transistors, or MOSFETs. Sounds like a mouthful, I know, but it ain’t so complicated.
Let’s start with the BJTs. These fellas got three parts: the emitter, the base, and the collector. Think of it like this: the emitter is where the electricity comes from, the collector is where it goes, and the base is like the little gatekeeper in between, tellin’ the electricity when to flow and how much. BJTs work by controlling the flow of current between the emitter and collector, and they use both holes and electrons to do their thing. That’s why they call ’em “bipolar,” see?
- Emitter: Where the electricity starts.
- Base: Controls the flow.
- Collector: Where the electricity ends up.
Now, MOSFETs are a bit different. They also got three parts, but they call ’em somethin’ else: the source, the gate, and the drain. Same kinda idea, though. Source is where the electricity comes in, drain is where it goes out, and the gate is the control freak, tellin’ the electricity what to do. But MOSFETs only use one kind of charge carrier, either holes or electrons, not both. That’s why they call ’em “unipolar,” I reckon.
So, what’s the big difference, you ask? Well, for one thing, MOSFETs are usually better at switchin’ things on and off real fast, while BJTs are good for amplifin’ signals, makin’ ’em stronger. And BJTs, they can be driven with a low voltage, but they need juice all the time to keep workin’. MOSFETs, they don’t need as much juice, but they might need a higher voltage to get goin’.
Another thing is, BJTs are usually used for smaller currents, like less than an amp. MOSFETs, they can handle bigger currents, I hear. It’s like the difference between a little garden hose and a big ol’ fire hose, ya know?

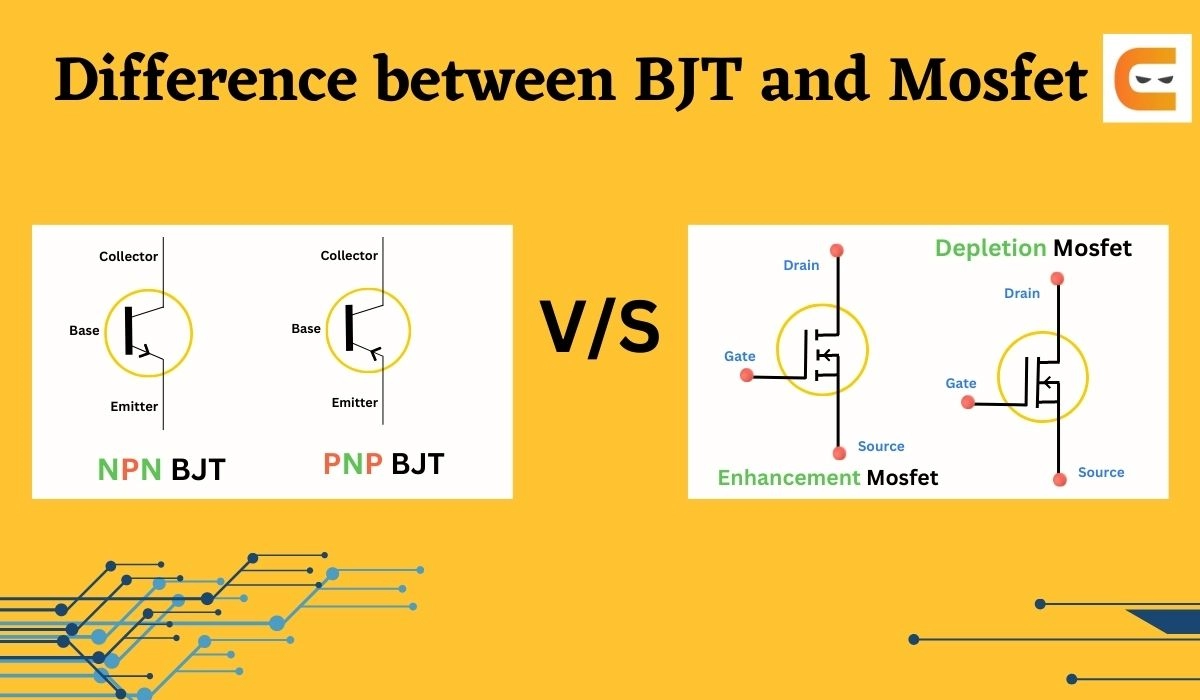

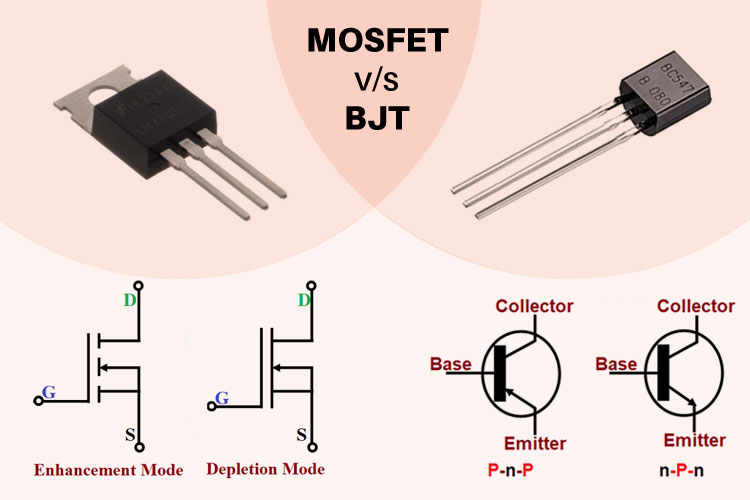

Now, there’s different kinds of BJTs and MOSFETs too. BJTs come in NPN and PNP varieties, and MOSFETs come in NMOS and PMOS. Don’t worry yer pretty little head about the details, it just means they use different kinds of semiconductor material, like N-type and P-type. It’s like different flavors of ice cream, I guess, some folks like vanilla, some folks like chocolate.
Here’s a little table to make it easier to see the differences:
| Feature | BJT (Bipolar Junction Transistor) | MOSFET (Metal Oxide Semiconductor Field Effect Transistor) |
|---|---|---|
| Terminals | Emitter, Base, Collector | Source, Gate, Drain |
| Charge Carriers | Both holes and electrons (Bipolar) | Either holes or electrons (Unipolar) |
| Operation | Controls current flow between emitter and collector | Controls current flow between source and drain |
| Typical Use | Amplification, switching (lower currents) | Switching (often higher currents, faster switching) |
| Drive Power | Needs continuous drive power | Lower drive power consumption |
So, which one’s better? Well, it ain’t that simple. It depends on what you’re tryin’ to do. If you need to amplify a weak signal, a BJT might be the way to go. If you need to switch somethin’ on and off real fast, a MOSFET might be better. It’s like askin’ whether a hammer or a screwdriver is better – they’re both good tools, but you use ’em for different jobs.
Anyways, that’s the gist of it, as far as I can tell. BJTs and MOSFETs are both transistors, they both control electricity, but they do it in slightly different ways and are used for different things. Hope that makes some sense to ya, even if I ain’t no fancy professor or nothin’.
